Storage Of Solar Cell System Batteries

Brand Dichu Equipment Technology (Shandong) Co., Ltd.

Product origin Weifang, China

Delivery time 15-20 days

Supply capacity 5GW

Storage solar cell system battery
Product highlights: L lithium iron phosphate battery, safe and efficient, the first choice for energy storage
Our storage solar cell system battery is specially designed for solar energy storage system, with excellent safety and long cycle life, and the number of cycles can reach more than 4000 times. The products are widely used in home energy storage, commercial backup, solar power station energy storage and other scenarios, supporting large-scale electric energy storage. With advanced R&D technology, our batteries have high energy density and pass strict safety tests. Strong production strength, continuous sales growth, sufficient inventory, and fast delivery. Choose our L lithium iron phosphate battery to open a new future of green energy storage.

Email

Storage Of Solar Cell System Batteries

Storage Solar Cell System Batteries

In today's critical period of energy transformation, storage solar cell system batteries are becoming the focus of global attention. Our storage solar cell system batteries use advanced lithium iron phosphate battery technology, which is known for its excellent safety, long life and high efficiency. Lithium iron phosphate batteries not only perform well in the field of home energy storage, but also show strong adaptability in commercial and industrial applications. Through efficient energy storage and release, our storage solar cell system batteries can ensure the full utilization of solar energy and provide users with reliable energy solutions.

System rated rangeshowRated voltage

System Parameters
5.12-30.72kwh
Battery rating	LFP(LiFepo4)
Protection level	IP66（户外）
Technical Parameters
Phase	Single Phase
Number of independent MPPTs	2	1
rated grid frequency	50 Hz/60 Hz
Rated output voltage	230 V
communication	CAN2.0/RS485,WIFI/4G(可选)
LCD & APP
Certification	EN IEC62109-1, EN IEC62109-2, IEC61683, IEC61727, IEC62116, IEC60068, EN IEC61000-6-1,EN IEC61000-6-3, IEC60529 IP66, EN50549-1, EN50530, Italy CEI 0-21, Germany VDE4105, UK G98, G99,Spain UNE217001, UNE217002, NTS 2.1，RoHS(2011/65/EU+2015/863), WEEE(2012/19/EU), ISTA, UKCA
Battery module technical parameters
51.2 V
Operating temperature range	﹣20-+50℃
Certification	IEC62619, IEC63056, EN IEC61000-6-1, IEC61000-6-3, EN IEC62040-1, EN IEC62477-1, IEC60730-1 Annex H, IEC60529 IP66, UN38.3, MSDS, RoHS(2011/65/EU+2015/863),WEEE(2012/19/EU), ISTA

According to local regulations and standardsCommunicationshow

System Parameters
Stable output power	3680w	4000w	4600w	5000w	6000w	3680w	4000w
System rated range	5.12-30.72kwh
Battery rating	LFP(LiFepo4)
Protection level	IP66（outdoor）
Technical Parameters
Inverter Model	DC-Genius 3680-S1	DC-Genius 4000-S1	DC-Genius 4600-S1	DC-Genius 5000-S1	DC-Genius 6000-S1	DC-Genius 3680-S2	DC-Genius4000-S2
Phase	Single Phase
Rated output voltage	220 V,230 V,240 V (According to local regulations and standards)
180 -276 V
Rated grid frequency	50 Hz/60 Hz

Rated output voltage	230 V
CAN2.0/RS485,WIFI/4G(Optional)
LCD & APP
Certification	EN IEC62109-1, EN IEC62109-2, IEC61683, IEC61727, IEC62116, IEC60068, EN IEC61000-6-1,EN IEC61000-6-3, IEC60529 IP66, EN50549-1, EN50530, Italy CEI 0-21, Germany VDE4105, UK G98, G99,Spain UNE217001, UNE217002, NTS 2.1，RoHS(2011/65/EU+2015/863), WEEE(2012/19/EU), ISTA, UKCA
Battery module technical parameters
Battery module model	DC-Genius 5H-P	DC-Genius 10H-P	DC-Genius 15H-P	DC-Genius 20H-P	DC-Genius 25H-P	DC-Genius 30H-P
Rated voltage	51.2 V
Operating temperature range	﹣20-+50℃
Certification	IEC62619, IEC63056, EN IEC61000-6-1, IEC61000-6-3, EN IEC62040-1, EN IEC62477-1, IEC60730-1 Annex H, IEC60529 IP66, UN38.3, MSDS, RoHS(2011/65/EU+2015/863),WEEE(2012/19/EU), ISTA

Lithium iron phosphate battery: core advantages

Lithium iron phosphate batteries are the core components of our energy storage systems. This battery uses lithium iron phosphate as the positive electrode material, which has extremely high chemical and thermal stability, allowing it to maintain normal operation even at extreme temperatures. Compared with traditional batteries, the cycle life of lithium iron phosphate batteries is significantly extended, reaching more than 6,000 times, which means lower replacement costs and longer service life. In addition, the energy density of lithium iron phosphate batteries is also constantly improving, which can meet large-scale energy storage needs while maintaining a small size and weight. In terms of safety, lithium iron phosphate batteries have passed a number of international standard safety tests, including needle penetration tests and overcharge tests, to ensure that thermal runaway or fire will not occur under any circumstances.

R&D and production capabilities

We are committed to improving the performance of lithium iron phosphate batteries through advanced R&D technology. Our R&D team is composed of industry experts who focus on the innovation of battery materials and the optimization of battery structure. Through continuous research and experiments, we have successfully increased the energy density of the battery, reduced the internal resistance, and further improved the battery's charge and discharge efficiency.。

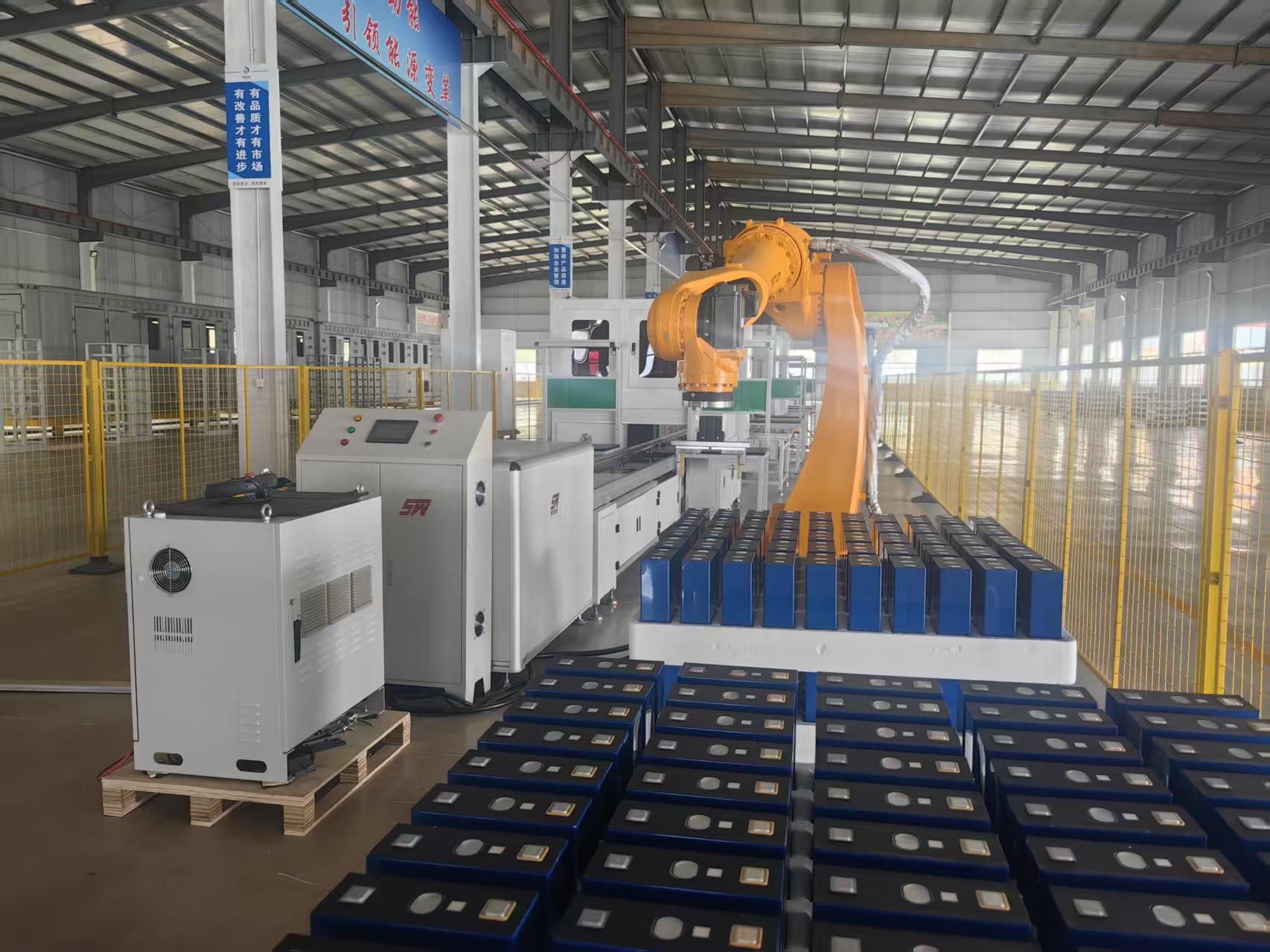

In the production process, we have a modern production line and a strict quality control system. Each lithium iron phosphate battery undergoes rigorous testing in multiple processes to ensure that its performance and safety meet the highest standards. Our production facilities use an intelligent management system that can monitor every link in the production process in real time to ensure the stability and consistency of product quality.

With excellent product performance and reliable quality, our lithium iron phosphate battery energy storage system has been widely recognized in the market. Our sales network covers many countries and regions around the world, providing customers with fast response and high-quality services. Whether it is a home user or a large commercial project, we can provide customized energy storage solutions according to customer needs.

At present, our lithium iron phosphate battery energy storage system has sufficient inventory to meet the immediate needs of customers. We promise to arrange shipment quickly after the customer places an order to ensure that the product can reach the customer in time. Our goal is to create greater value for customers through efficient service and high-quality products.
