Solar And Battery Systems
Brand Dichu Equipment Technology (Shandong) Co., Ltd.
Product origin Weifang, China
Delivery time 15-20 days
Supply capacity 5GW
Storage Solar Battery System Batteries
Our solar energy storage battery system uses advanced lithium iron phosphate battery technology, with high safety, long cycle life and excellent performance. Products are widely used in home, commercial and industrial scenarios to meet diverse energy management needs. With strong R&D capabilities and strict production standards, our battery systems are industry-leading in energy density and stability. Sales continue to grow, and sufficient inventory ensures fast delivery. Choose our energy storage batteries to start an efficient and reliable green energy journey.
Storage Solar System Batteries
Product introduction:
The storage solar battery system we launched is an intelligent energy solution that integrates lithium iron phosphate batteries and high-performance inverters. It is designed for home, industrial and commercial, microgrids, and source-grid-load-storage scenarios. The system adopts a modular design, supports stacking and wall-mounted installation, and is flexible to adapt to different space requirements. It also has the characteristics of efficient energy conversion, long life, high safety and intelligent management.
Inverter parameters
Phase number: three-phase
Maximum photovoltaic input voltage: 1000 V
Number of independent MPPTs: 2
Rated output voltage: 400V
Grid voltage range: 320V-480 V
Rated grid frequency: 50 Hz/60 Hz
Grid frequency range: 45~55Hz / 55~65Hz (according to grid standards)
Communication method: RS485/WIFI/4G (optional)
Display: LED+bluetooth+APP
Battery module technical parameters | |
Battery module model | DC-Genius 10HS——DC-Genius 60HS |
Number of modules | 4-12 |
Battery capacity | 10 kWh-60 kWh |
Rated voltage | 204.8 V-614.4 V |
Maximum operating current | 25 A |
Operating temperature range | ﹣20-+50℃ |
Certification | IEC62619, IEC63056, EN IEC61000-6-1, IEC61000-6-3, EN IEC62040-1, EN IEC62477-1 IEC60529 IP66, UN38.3, MSDS, RoHS(2011/65/EU+2015/863),WEEE(2012/19/EU), ISTA |
Features
Efficient energy conversion
Using high-quality lithium iron phosphate batteries, the cycle life exceeds 6,000 times and the service life is more than 10 years.
The inverter has a maximum conversion efficiency of more than 98% and supports fast charging and discharging.
Flexible installation method

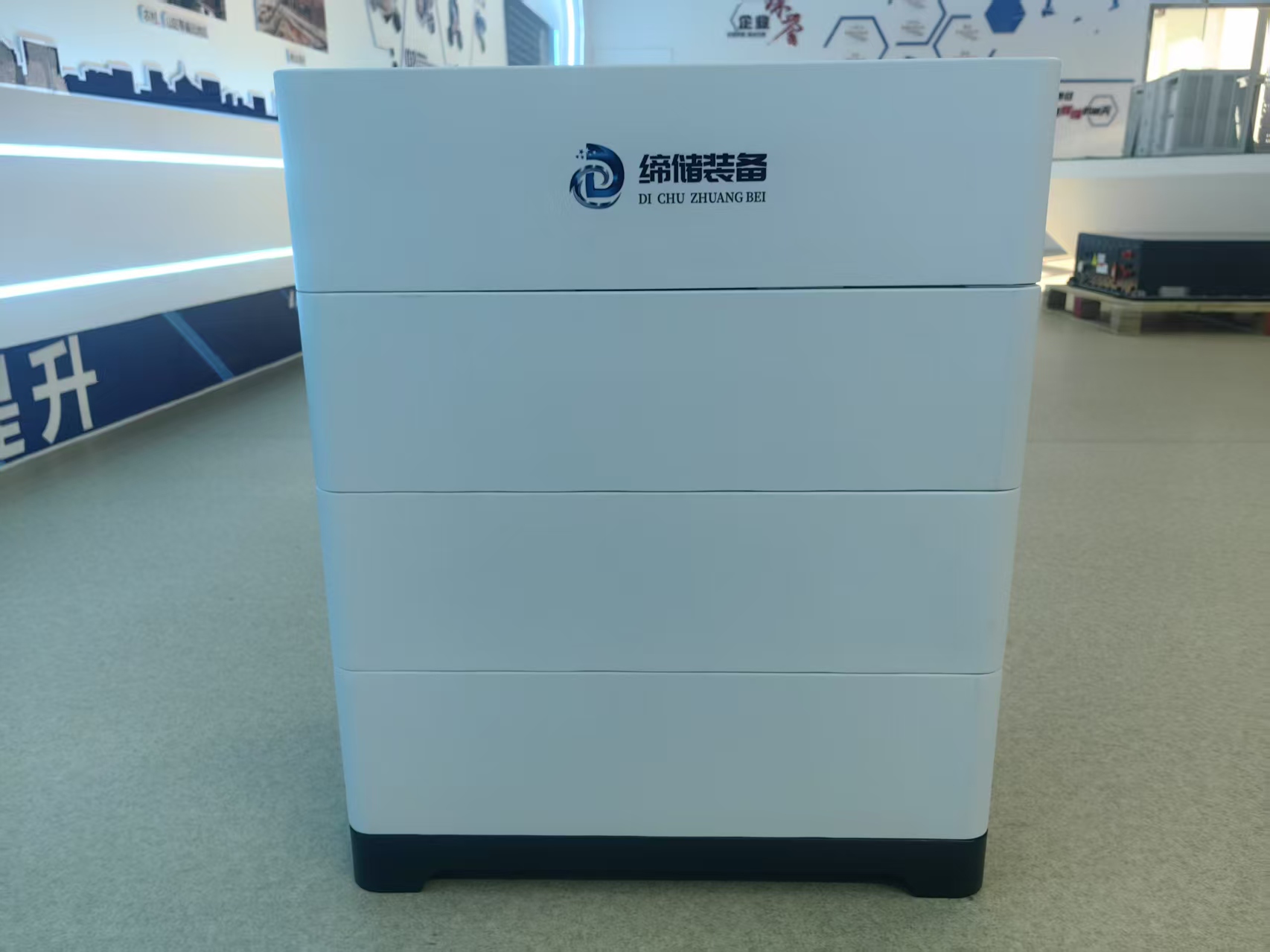

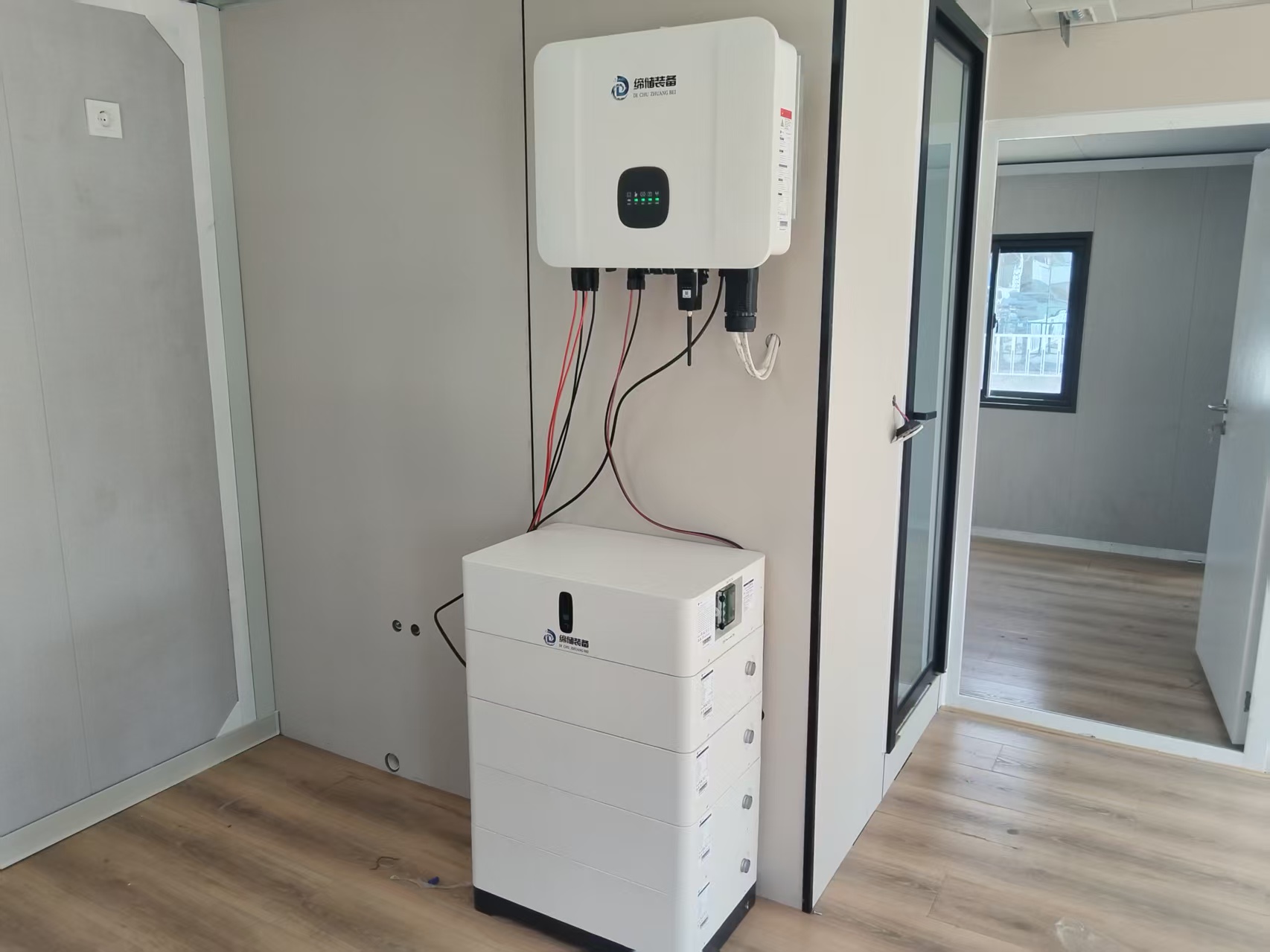

Supports stacking and wall-mounting installation, saving space, and supports up to 6 stackings for a single machine.
Modular design, simple wiring, high reliability, fast response, long service life, more efficient, safe, and easy to expand.
Intelligent management system
Equipped with advanced battery management system (BMS), real-time monitoring of battery status, and multiple protections such as overvoltage, undervoltage, and overtemperature. Supports multiple communication protocols such as RS485 and CAN, and can be seamlessly integrated with mainstream inverters.
High safety
Lithium iron phosphate batteries have excellent thermal stability and will not cause thermal runaway even under extreme conditions.
The inverter has a complete fault protection function to ensure safe operation of the system.
Application Scenario
Home Energy Storage
Combined with solar panels, it can store excess energy during the day and use it at night or during power outages.
Provide backup power to ensure that basic household appliances can operate normally during power outages.
Industrial and commercial energy storage
Charge when electricity prices are low and discharge when electricity prices are high, reducing electricity costs.
Improve energy efficiency and reduce dependence on the power grid.
Microgrid
Supports off-grid and grid-connected operation to improve energy self-sufficiency.
Optimizes the use of distributed energy and reduces the instability of renewable energy generation.
Source, Grid, Load and Storage
Smooth out power fluctuations on the power generation side and the user side to improve the quality of the power grid.
Achieve primary and secondary frequency regulation control to improve the stability of the power grid
