Light Storage Green Intelligent Two-story Modular Residential Building
Brand Dichu Equipment Technology (Shandong) Co., Ltd.
Product origin Weifang, China
Delivery time 15-20 days (can be expedited)
Supply capacity Annual output 1 million square meters
Product highlights of the photovoltaic storage green smart two-story modular residential building
1. Energy integration of photovoltaic storage green smart two-story modular residential building: combining green design concepts, adapting solar panels and energy storage equipment, realizing the use of clean energy, and further reducing energy consumption.
2. Green environmental protection and energy-saving design of photovoltaic storage green smart two-story modular residential building
-Environmentally friendly materials: using fireproof rock wool, galvanized steel frames and other materials, with high strength and low pollution characteristics, some panels meet Class A fire protection standards, reducing fire risks.
Energy saving and heat preservation: The wall is filled with insulation materials (such as polyurethane and rock wool), with airtight design, warm in winter and cool in summer, reducing air conditioning energy consumption; modular production reduces on-site construction pollution.
Recycling: It can be disassembled and reused many times, with a lifespan of 8-10 years, reducing the generation of construction waste, and conforming to the concept of sustainable development.
3. Structural safety and adaptability of photovoltaic storage green smart two-story modular residential building
Strong disaster resistance: The light steel structure is stable, with outstanding earthquake and wind resistance, which can resist natural disasters such as typhoons and earthquakes, and ensure residential safety.
Fireproof and moisture-proof: Some sandwich panels have a fireproof grade of A, and the core material is waterproof and moisture-proof, suitable for humid or rainy environments.
Wide terrain adaptability: It can be built on complex terrains such as hillsides, deserts, and riverbanks, without occupying permanent land resources, and is suitable for temporary or semi-permanent building needs.
4. Flexible construction and rapid delivery of Guangchu Green Smart Two-Story Mobile House
Modular design: Standardized components are prefabricated in the factory, assembled on site, and ready to use.
Flexible space customization: Customization is supported, the interior can be freely partitioned, and the position of doors and windows can be adjusted arbitrarily to meet the diverse needs of office, residence, warehousing, etc.
Convenient mobility: The overall detachable transportation is suitable for frequent relocation scenarios (such as construction sites, temporary exhibitions), reducing transportation costs.
5. Guangchu Green Smart Two-Story Mobile House combines economy and aesthetics
Cost advantage: Compared with traditional buildings, the cost is 30%-50% lower, and no long-term maintenance is required, with a high return on investment.
The green and intelligent two-story mobile houses of Guangchu have achieved a comprehensive upgrade in safety, energy saving, flexibility and economy through intelligent control, application of environmentally friendly materials, efficient energy management and modular construction technology. They are especially suitable for temporary offices, emergency housing, eco-tourism and other fields.
Product name: Solar energy storage green smart two-story modular house

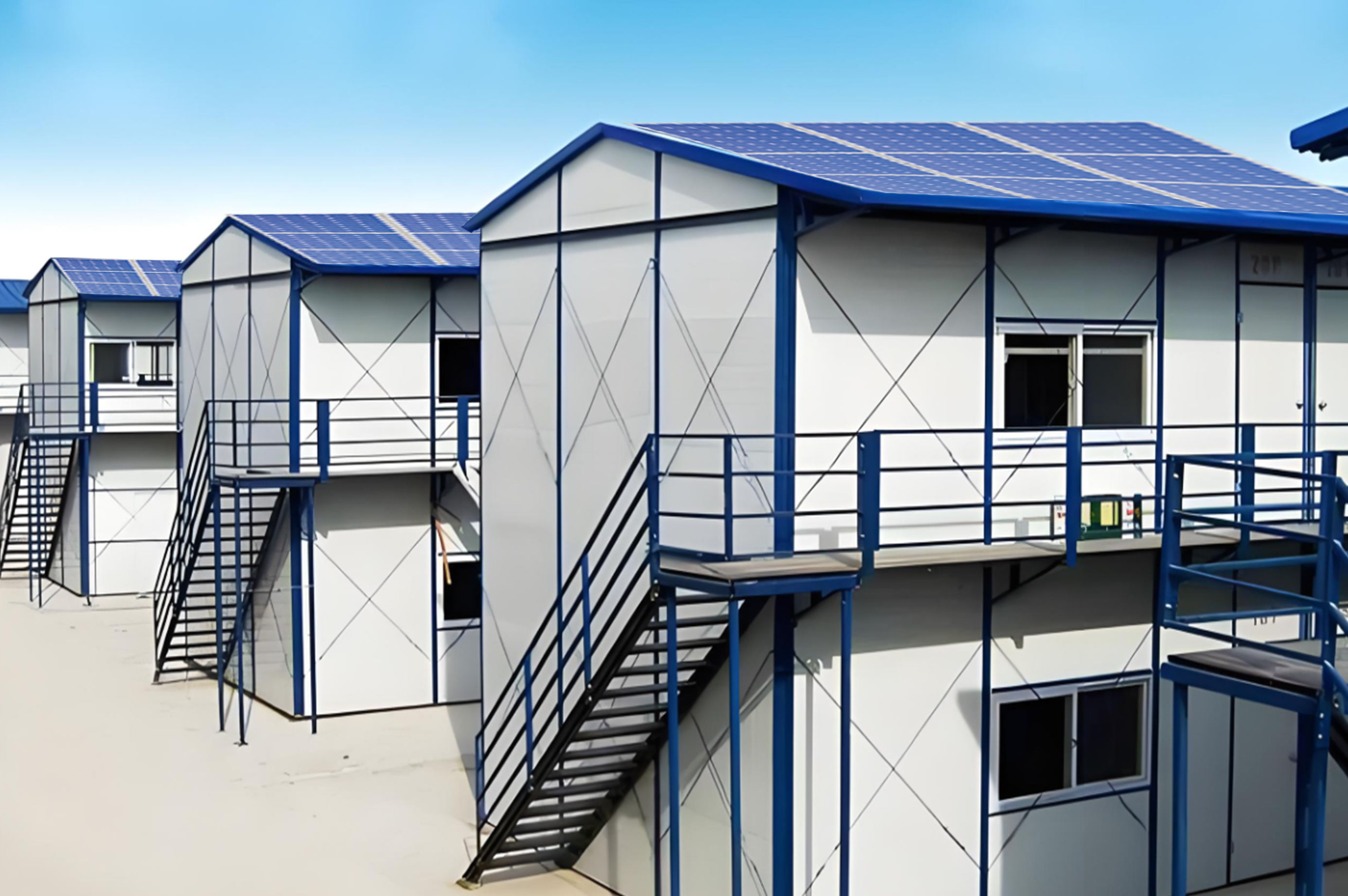

Product images
3. Product Detailed Description:
The photovoltaic energy storage green smart two-story modular house is a color steel mobile house that integrates a photovoltaic energy storage integrated system, providing users with efficient, environmentally friendly and intelligent living or use space. This house not only has the flexibility and convenience of traditional mobile houses, but also achieves energy self-sufficiency and intelligent management through advanced photovoltaic energy storage technology, which is an innovative breakthrough in the field of green buildings.
Product Features
The structure of the photovoltaic energy storage green smart two-story modular house: It adopts a combination of light steel frame and rock wool color steel plate splicing, with good thermal insulation performance, fire resistance, wind resistance and earthquake resistance. The modular design is reusable, and the installation and disassembly are fast and convenient, which conforms to the concept of environmental protection.
2. Photovoltaic energy storage integrated system:
The photovoltaic energy storage green smart two-story mobile house is equipped with high-performance solar photovoltaic panels, which are installed on the top of the house to convert solar energy into electrical energy, give priority to solar power generation, and store excess electricity to ensure stable power supply on rainy days or at night, so as to achieve self-generation and self-use of energy without relying on the external power grid. The excess electricity can also be sold on the grid, saving electricity costs in the long term.
Intelligent management of the two-story green smart mobile house with photovoltaic storage: equipped with energy management system (EMS) and battery management system (BMS) to achieve intelligent monitoring and management. It has functions such as overcharge protection, over-discharge protection, temperature monitoring, etc. to ensure stable operation in various environments.
Stable power supply of the two-story green smart mobile house with photovoltaic storage: it has the functions of peak shaving and valley filling, frequency modulation and peak regulation, improves the quality of the power grid, and reduces the fluctuation of power consumption on the user side.
Application scenarios of the two-story green smart mobile house with photovoltaic storage: enterprises and institutions, disaster relief, business, conference rooms, field operation barracks, municipal resettlement housing, homestays, military training bases, communication base stations, villas, emergency, etc.
Advantages of the two-story green smart modular house with photovoltaic storage: low carbon, green, energy-saving, economic and environmentally friendly, easy to disassemble and assemble, fireproof and heat-insulating, long service life
4. Product details parameters: Specifications: 5620 mm*3640mm (color and size can be customized)
7440mm*3640mm
3. Product Detailed Description:
The photovoltaic energy storage green smart two-story modular house is a color steel mobile house that integrates a photovoltaic energy storage integrated system, providing users with efficient, environmentally friendly and intelligent living or use space. This house not only has the flexibility and convenience of traditional mobile houses, but also achieves energy self-sufficiency and intelligent management through advanced photovoltaic energy storage technology, which is an innovative breakthrough in the field of green buildings.
Product Features
The structure of the photovoltaic energy storage green smart two-story modular house: It adopts a combination of light steel frame and rock wool color steel plate splicing, with good thermal insulation performance, fire resistance, wind resistance and earthquake resistance. The modular design is reusable, and the installation and disassembly are fast and convenient, which conforms to the concept of environmental protection.
2. Photovoltaic energy storage integrated system:
The photovoltaic energy storage green smart two-story mobile house is equipped with high-performance solar photovoltaic panels, which are installed on the top of the house to convert solar energy into electrical energy, give priority to solar power generation, and store excess electricity to ensure stable power supply on rainy days or at night, so as to achieve self-generation and self-use of energy without relying on the external power grid. The excess electricity can also be sold on the grid, saving electricity costs in the long term.
Intelligent management of the two-story green smart mobile house with photovoltaic storage: equipped with energy management system (EMS) and battery management system (BMS) to achieve intelligent monitoring and management. It has functions such as overcharge protection, over-discharge protection, temperature monitoring, etc. to ensure stable operation in various environments.
Stable power supply of the two-story green smart mobile house with photovoltaic storage: it has the functions of peak shaving and valley filling, frequency modulation and peak regulation, improves the quality of the power grid, and reduces the fluctuation of power consumption on the user side.
Application scenarios of the two-story green smart mobile house with photovoltaic storage: enterprises and institutions, disaster relief, business, conference rooms, field operation barracks, municipal resettlement housing, homestays, military training bases, communication base stations, villas, emergency, etc.
Advantages of the two-story green smart modular house with photovoltaic storage: low carbon, green, energy-saving, economic and environmentally friendly, easy to disassemble and assemble, fireproof and heat-insulating, long service life
4. Product details parameters: Specifications: 5620 mm*3640mm (color and size can be customized)
5. Product details pictures and description

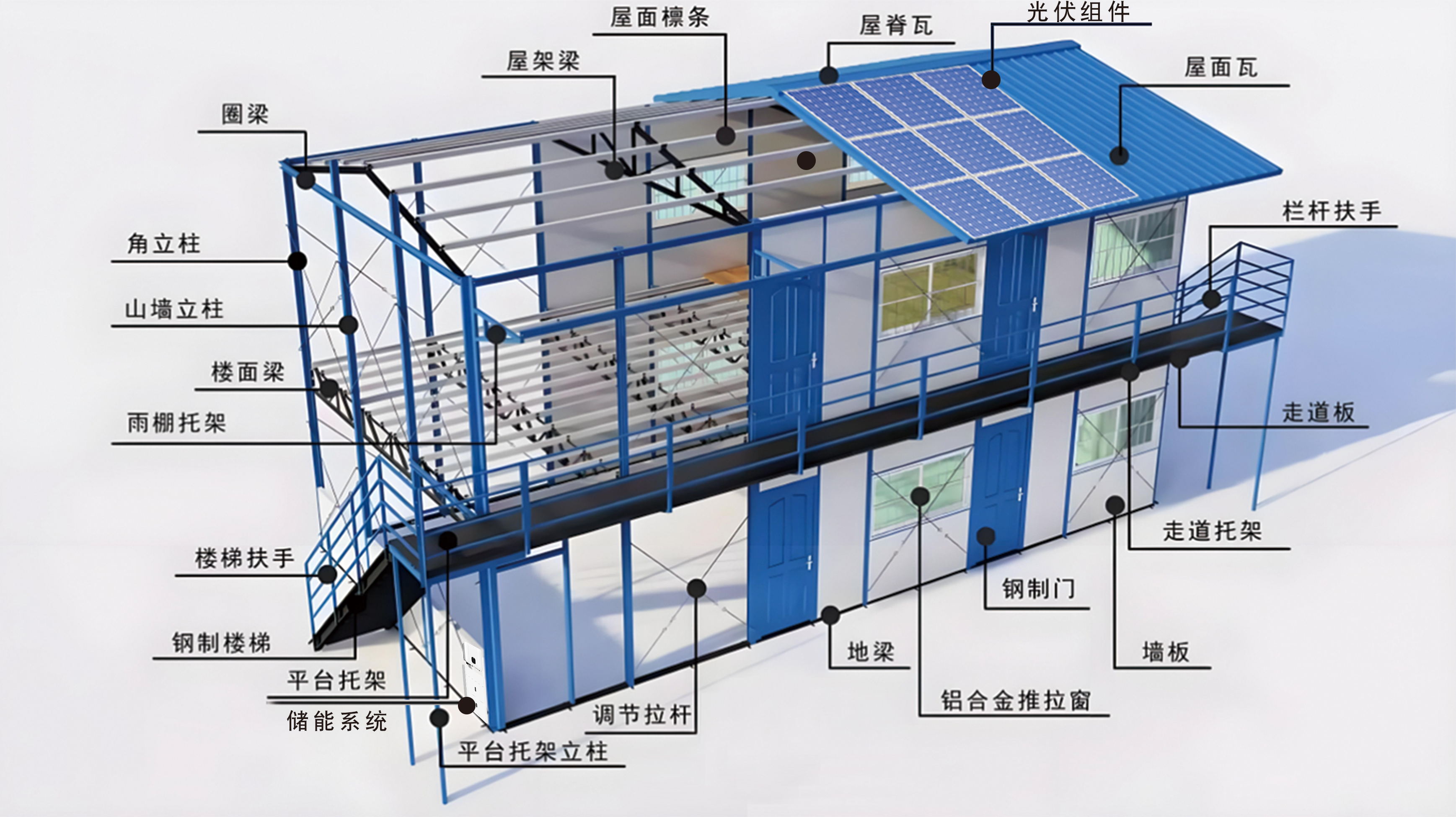

The prefabricated house mainly has light steel frame structure and color steel sandwich panel structure. The following is a specific description:
Light steel frame structure
Steel column: usually C-shaped steel or square steel pipe is used. It is the main vertical load-bearing component of the prefabricated house. It is arranged at a certain distance along the four corners of the prefabricated house and the length of the wall. The weight of the prefabricated house is transferred to the foundation. It can withstand large vertical and horizontal loads to ensure the stability of the structure.
Steel beam: Generally, C-shaped steel or H-shaped steel is used as a horizontal load-bearing component. It is placed on the steel column, bears the load of the roof and floor, and transfers the load to the steel column.
Purlin: Mostly C-shaped steel or Z-shaped steel, arranged vertically with the steel beam, used to support the roof color steel sandwich panel or roof panel, and evenly transfer the roof load to the steel beam. The spacing is determined according to the specifications and load requirements of the roof panel.
Support system: includes horizontal support and vertical support, and round steel or angle steel is often used. Horizontal supports are set in the roof or floor plane to enhance the horizontal rigidity and integrity of the structure and resist horizontal forces; vertical supports are set along the column height to improve the stability of the steel column and enhance the structure's ability to resist lateral forces.
Color steel sandwich panel structure
Color steel panel: Made of color coated steel plate, it has rich colors and good decorativeness, high strength and good durability, can protect the core material in the middle, and at the same time withstand external wind loads, snow loads, etc.
Core material: polystyrene, rock wool, polyurethane, etc. The polystyrene core material is light, has good thermal insulation but poor fire resistance; the rock wool core material has good fire resistance, thermal insulation and sound insulation; the polyurethane core material has excellent thermal insulation, waterproofness and strength.
Connection method: The boards are mostly connected by tongue and groove or concealed buckle. The tongue and groove connection is that the edge of the board has a concave and convex tongue and groove, which is plugged into each other during installation and then sealed with sealant, which has good waterproofness and integrity; the concealed buckle connection is to fix the board to the frame through special fasteners, which has a neat appearance and is easy to install.
The ground structure of prefabricated houses often uses concrete foundations or steel raised floors, and the door and window structures generally use plastic steel doors and windows or color steel sandwich panel doors to meet the functional requirements and the stability of the overall structure.
Charge when electricity prices are low and discharge at peak times to reduce electricity costs.
Improve energy efficiency and reduce dependence on the power grid.
Microgrid
