Photovoltaic Solar Module Cell System
Brand Dichu Equipment Technology (Shandong) Co., Ltd.
Product origin Weifang, China
Delivery time 15-20 days
Supply capacity 5GW
Product highlights:
Photovoltaic solar panel battery system
The photovoltaic solar panel battery system is a clean energy solution that integrates efficient power generation and intelligent energy storage. It is widely used in households, industry and commerce, agriculture and areas without electricity. The system uses advanced N-type TOPCon battery technology with a conversion efficiency of up to 22.45%-24.8%, and has lower light-induced degradation and temperature coefficient, ensuring efficient power generation in low-light environments. At the same time, the system is equipped with high-performance energy storage batteries to support double-sided power generation, further improving power generation gain.
In terms of application scenarios, the photovoltaic solar panel battery system is suitable for a variety of environments, including distributed power generation, building integration, agricultural irrigation, and off-grid power supply in islands and remote areas.
Photovoltaic solar panel battery system
In today's era of sustainable development, photovoltaic solar panel battery systems have become an ideal choice for households, commercial and industrial users around the world. This system can not only efficiently utilize solar energy, but also ensure the stability and reliability of power supply through advanced energy storage technology.光伏板参数：
Peak Power：710W
Cell type: monocrystalline silicon
Open circuit voltage（Voc）：48.28V
Short circuit current（Isc）：14.21A
Module efficiency：23.3%
Temperature coefficient：
Pmax：-0.28%/°C
Voc：-0.24%/°C
Isc：+0.046%/°C
Frame Type: Anodized Aluminum
Junction box protection level：IP68
Peak Power：610W
Cell type: monocrystalline silicon
Open circuit voltage（Voc）：48.7V
Short circuit current（Isc）：15.94A
Module efficiency：22.6%
Temperature coefficient:
Pmax：-0.28%/°C
Voc：-0.24%/°C
Isc：+0.046%/°C
Frame Type: Anodized Aluminum
Junction box protection level：IP68
Efficient energy utilization: the perfect combination of photovoltaic solar panels and energy storage
The photovoltaic solar module battery system uses high-efficiency monocrystalline silicon solar modules, combined with advanced N-type TOPCon cell technology, to ensure high conversion efficiency under various lighting conditions. These modules are able to maintain good performance in weak light conditions and maximize the use of solar energy. At the same time, the system is equipped with high-performance energy storage batteries that can store excess electricity during the day and release it at night or on cloudy days to ensure uninterrupted power supply. The intelligent battery management system (BMS) monitors the battery status in real time to ensure the safe and efficient operation of the battery and extend the battery life. This design not only reduces dependence on traditional power grids, but also provides reliable backup power during power outages.
Product Features
Efficient integrated design
The system adopts an integrated design, which highly integrates the photovoltaic controller, bidirectional converter, energy storage battery, battery management system (BMS) and energy management system (EMS) to achieve seamless coordination of "light + storage".
Intelligent energy management
Equipped with advanced EMS, it can monitor and optimize photovoltaic power generation, energy storage charging and discharging, and load power consumption in real time to ensure the maximum efficiency of system operation.

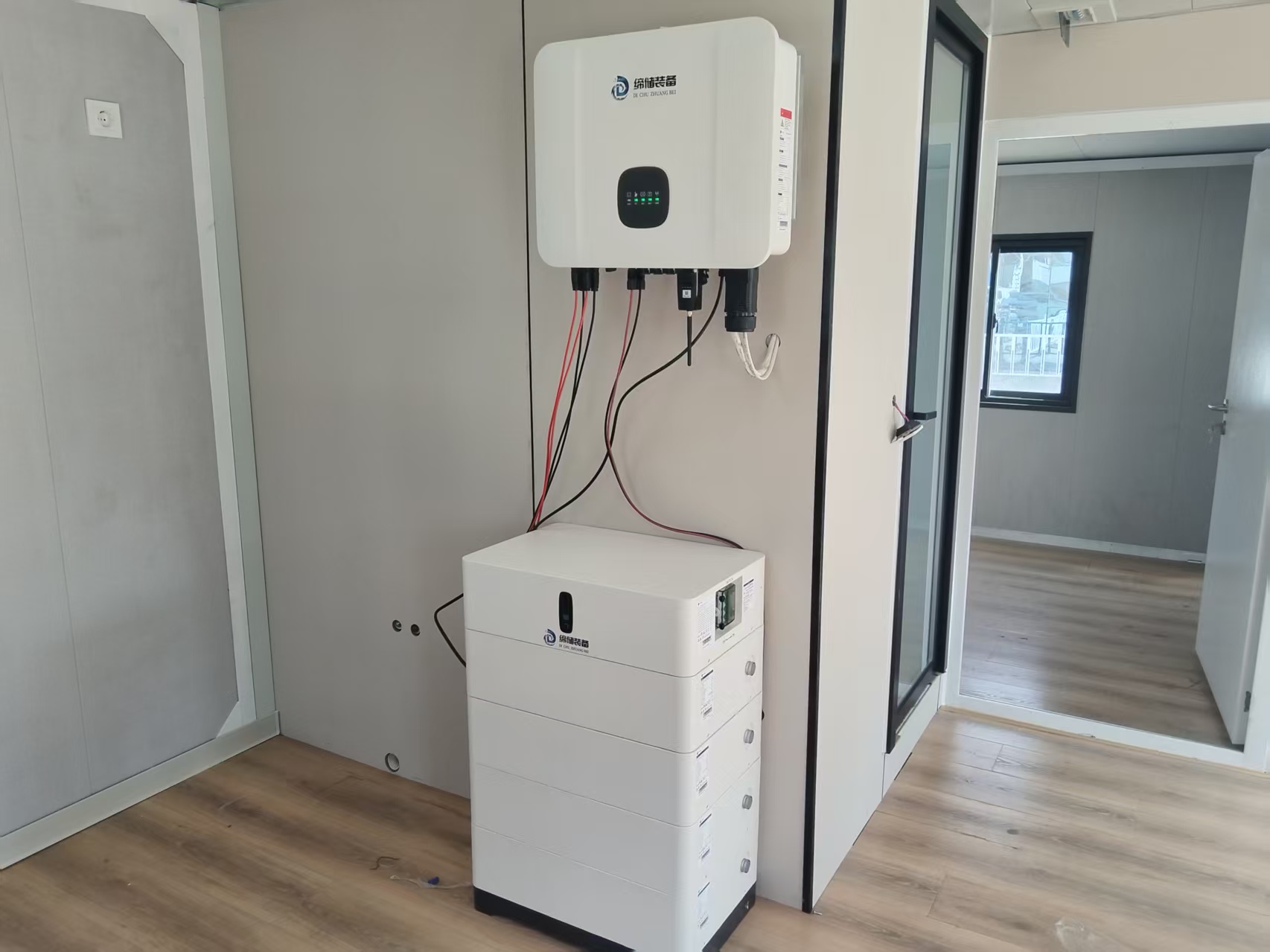

Flexible configuration and installation
Support modular design, flexible configuration of capacity according to user needs, and stacking and wall-mounted installation methods are provided to save space.
High safety and reliability
The lithium iron phosphate battery is used, which has high safety, long life and good thermal stability. The system is also equipped with active safety and thermal management systems to ensure stable operation under extreme conditions.
Technical advantages
Efficient photovoltaic power generation
The high-efficiency photovoltaic modules are used, and the photoelectric conversion efficiency can reach more than 23%, ensuring that the system can generate electricity efficiently under different lighting conditions.
Long-life energy storage
The lithium iron phosphate battery has a cycle life of more than 6,000 times and a service life of more than 10 years, which significantly reduces the cost of the entire life cycle.
Intelligent monitoring and operation and maintenance
Supports remote monitoring, data analysis and fault warning. Users can manage the energy system in real time through mobile APP or cloud platform
Applicable to multiple scenarios
Applicable to various scenarios such as home, industry and commerce, microgrid, highway service area, industrial park, etc., supporting grid-connected and off-grid operation.
