Modular Movable Optical Storage Intelligent Expansion Box
Brand Dichu Equipment Technology (Shandong) Co., Ltd.
Product origin Weifang, China
Delivery time 15-20 days (can be expedited)
Supply capacity Annual production: 10,000 sets
Modular and removable optical storage intelligent expansion box product highlights
The modular and movable photovoltaic storage intelligent expansion box adopts a double-wing expansion design, with flexible and variable space. The photovoltaic storage intelligent system realizes efficient use of clean energy and energy saving and consumption reduction. Its structure is stable, adaptable to various terrains, easy to move, fast to install, and supports customization to meet the diverse needs of office, residence, storage, etc. Compared with traditional buildings, it is 30%-50% cheaper and does not require long-term maintenance. It is an ideal choice for temporary office, emergency housing, eco-tourism and other fields.
Product name: Modular removable optical storage intelligent expansion box

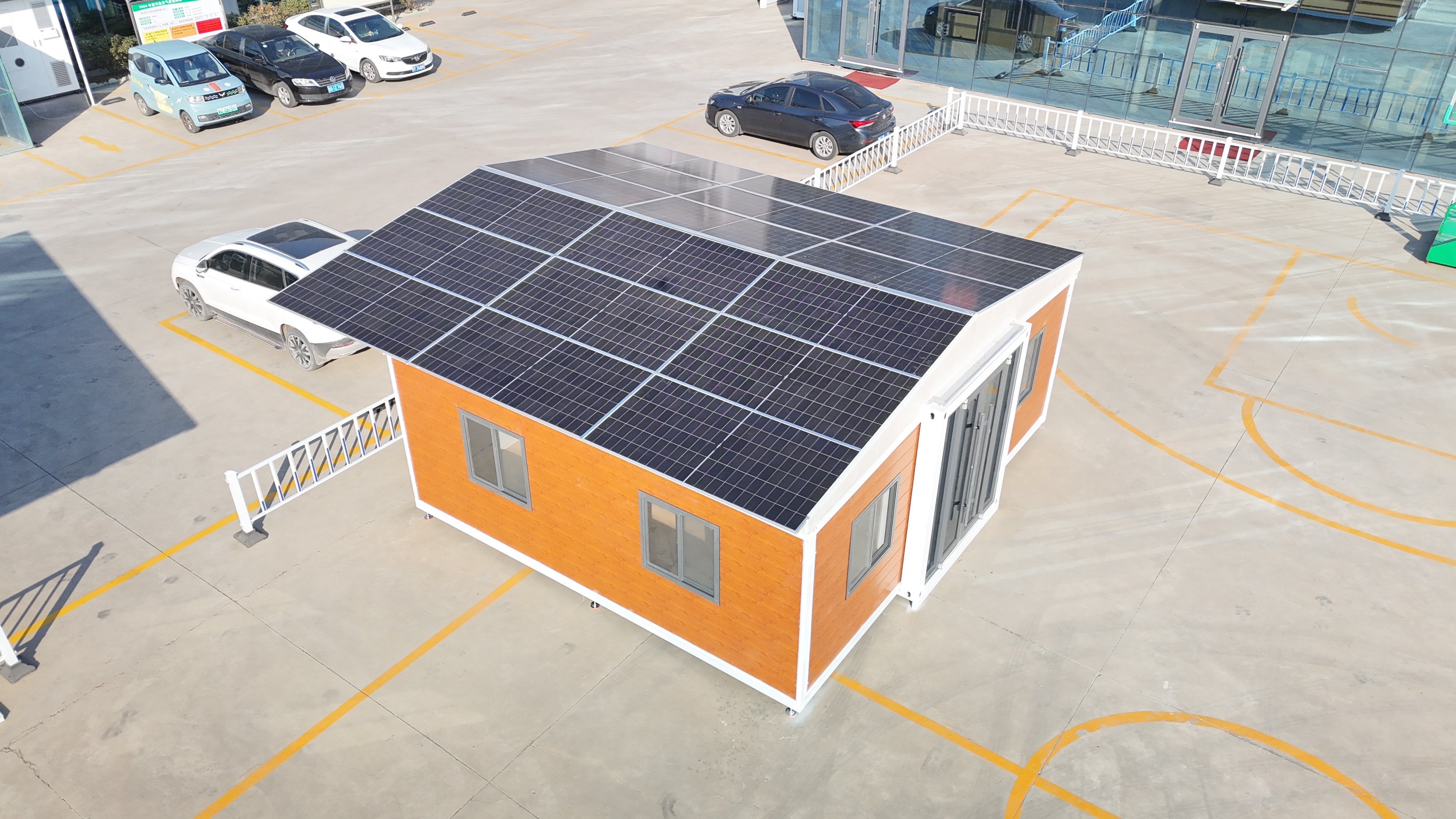

Product images
3. Product Detailed Description:
The modular mobile photovoltaic storage intelligent expansion box is an innovative residential solution that integrates a double-wing expansion box house with a photovoltaic energy storage integrated system. It not only meets the needs of modern people for flexible living space, but also realizes an efficient and environmentally friendly lifestyle through green energy technology.
Product Features:

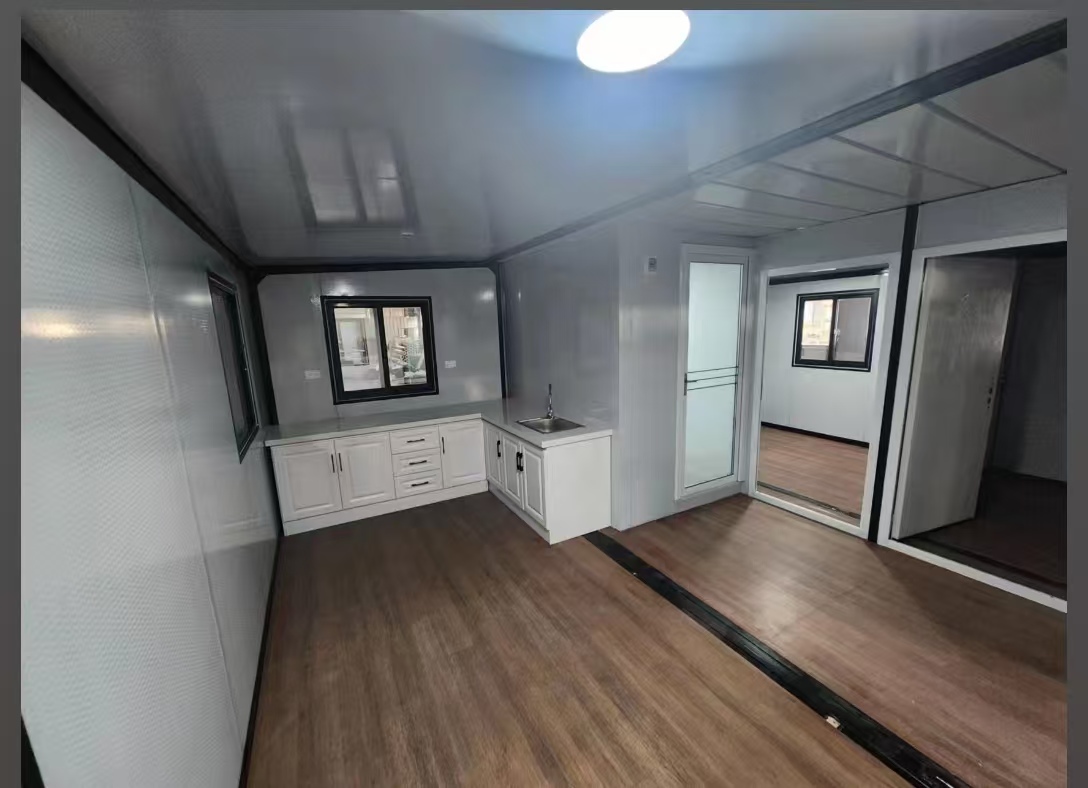

The mobile photovoltaic storage intelligent expansion box house adopts high-quality steel and innovative folding design. Through the double-wing expansion mechanism, the house area can be more than doubled in a short time. It can be made into 2 bedrooms and 1 living room, 3 bedrooms and 1 living room, and the layout is diversified. The appearance color, pattern and material can be customized according to user needs to meet different aesthetic and functional needs.
2. Photovoltaic energy storage integrated system: green energy

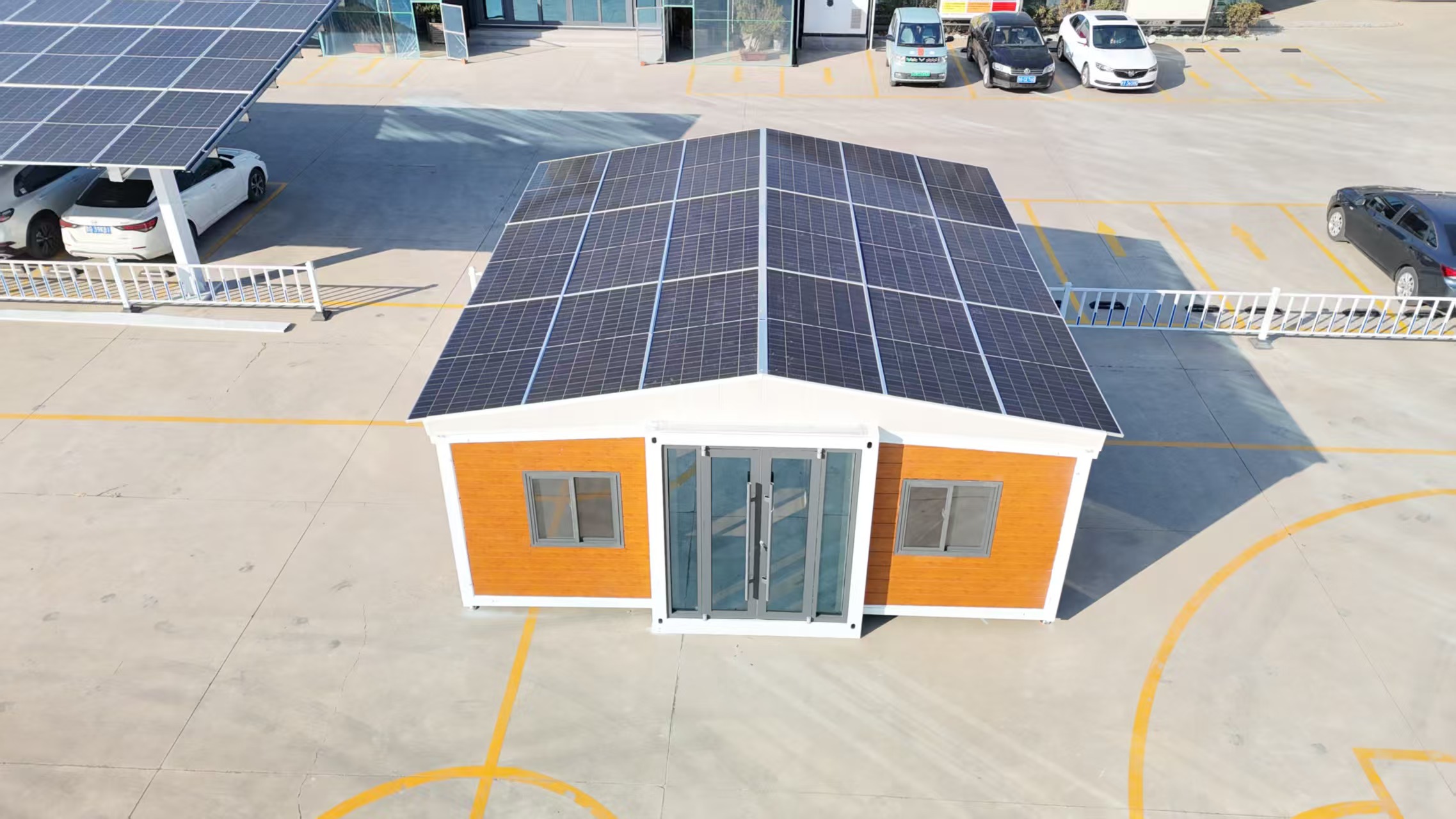

The mobile photovoltaic storage intelligent expansion box is equipped with high-performance solar photovoltaic panels, which are installed on the roof of the house to convert solar energy into electricity. Solar power generation is used first, and excess electricity is stored to ensure stable power supply on rainy days or at night, so as to achieve self-generation and self-use of energy without relying on the external power grid. Excess electricity can also be sold to the grid, saving electricity costs in the long term.
Intelligent management: The modular photovoltaic storage intelligent expansion box is equipped with an energy management system (EMS) and a battery management system (BMS) to achieve intelligent monitoring and management. It has functions such as overcharge protection, over-discharge protection, and temperature monitoring to ensure stable operation in various environments.
Stable power supply: The modular photovoltaic storage intelligent expansion box has the functions of peak shaving and valley filling, frequency modulation and peak shaving, which improves the quality of the power grid and reduces the fluctuation of power consumption on the user side.
Application scenarios: enterprises and institutions, disaster relief, business, conference rooms, field operation barracks, municipal resettlement housing, homestays, military training bases, communication base stations, villas, emergency, etc.
Advantages of modularized solar storage intelligent expansion box: low carbon, green, energy-saving, economical and environmentally friendly, easy to disassemble and assemble, fireproof and heat-insulating, long service life, self-sufficient electricity, saving electricity bills, reducing carbon emissions, strong mobility, and easy solution to energy and housing problems. All products can provide customized services
4.Product details parameters: Specifications and models：
Unfolded size: length 5900 (11380) mm * width 6300 mm * height 2480 mm
Folded size: length 5900 (11380) mm * width 2200 mm * height 2480 mm
| Product Name | Light storage green smart house (20HQ double-wing expansion box) | ||||
| Dimensions before expansion (external dimensions) | Length 5900mm, width 2200mm, height 2480mm | ||||
| Expanded dimensions (external dimensions) | Length 5900mm, width 6300mm, height 2480mm | ||||
| Area | 37.17㎡ | ||||
| Approximate total weight | 4.5 tons (estimated) | ||||
| Photovoltaic storage system | |||||
| Photovoltaic installed capacity | Dimensions (mm) | Power (Wp) | Quantity (blocks) | Total installed capacity（kWp) | Double-slope pointed roof with 18 photovoltaic panels fully covered and off-grid solution |
| Photovoltaic panels | 610 | 18 | 10.98 | ||
| Energy storage installed capacity | Total installed capacity（kWh) | ||||
| Energy storage battery pack | 20 | ||||
| Bathroom Hardware | |||||
| 18 | toilet | Brand toilet*1 set | |||
| 19 | Shower | Handheld showerhead*1 set | |||
| 20 | Cabinet Basin | Ordinary mirror cabinet ceramic integrated basin * 1 set | |||
| 21 | Water supply and drainage | Water supply and drainage*1 set | |||
| Solar Storage Green Smart House 20HQ Expansion Box (1 bedroom, 1 living room, 1 bathroom)： | |||||
5.
Product details pictures and description
Modular design of modular light storage intelligent expansion box: using standardized modules, each module has independent functions and can be freely combined. According to different needs, such as space size, functional layout, etc., the modules can be flexibly added, subtracted or adjusted, and the transformation from a single residence to a multi-person activity space can be easily realized, meeting diverse scenarios, whether it is field scientific research, emergency rescue, or temporary building construction in scenic spots.
Movable design: The mobile light storage intelligent expansion box is equipped with convenient handling interfaces and lifting points, and rollers or slide rails are installed at the bottom, which is convenient for moving and transporting with the help of forklifts, cranes and other equipment. The connection between modules is stable during transportation, which can adapt to various road conditions. After arriving at the destination, it can be quickly assembled and put into use.
Shell material: The modular light storage intelligent expansion box uses high-quality steel with high strength, which can effectively reduce the overall weight and is easy to move. It also has good corrosion resistance and can be used for a long time in harsh environments. The surface is specially treated to enhance wear resistance and oxidation resistance.
Monocrystalline silicon photovoltaic panel is an efficient and stable solar power generation equipment, which is made of monocrystalline silicon material and is widely used in photovoltaic power generation systems. Its core advantages lie in high photoelectric conversion efficiency, excellent low light performance and long life, making it an important part of modern clean energy.

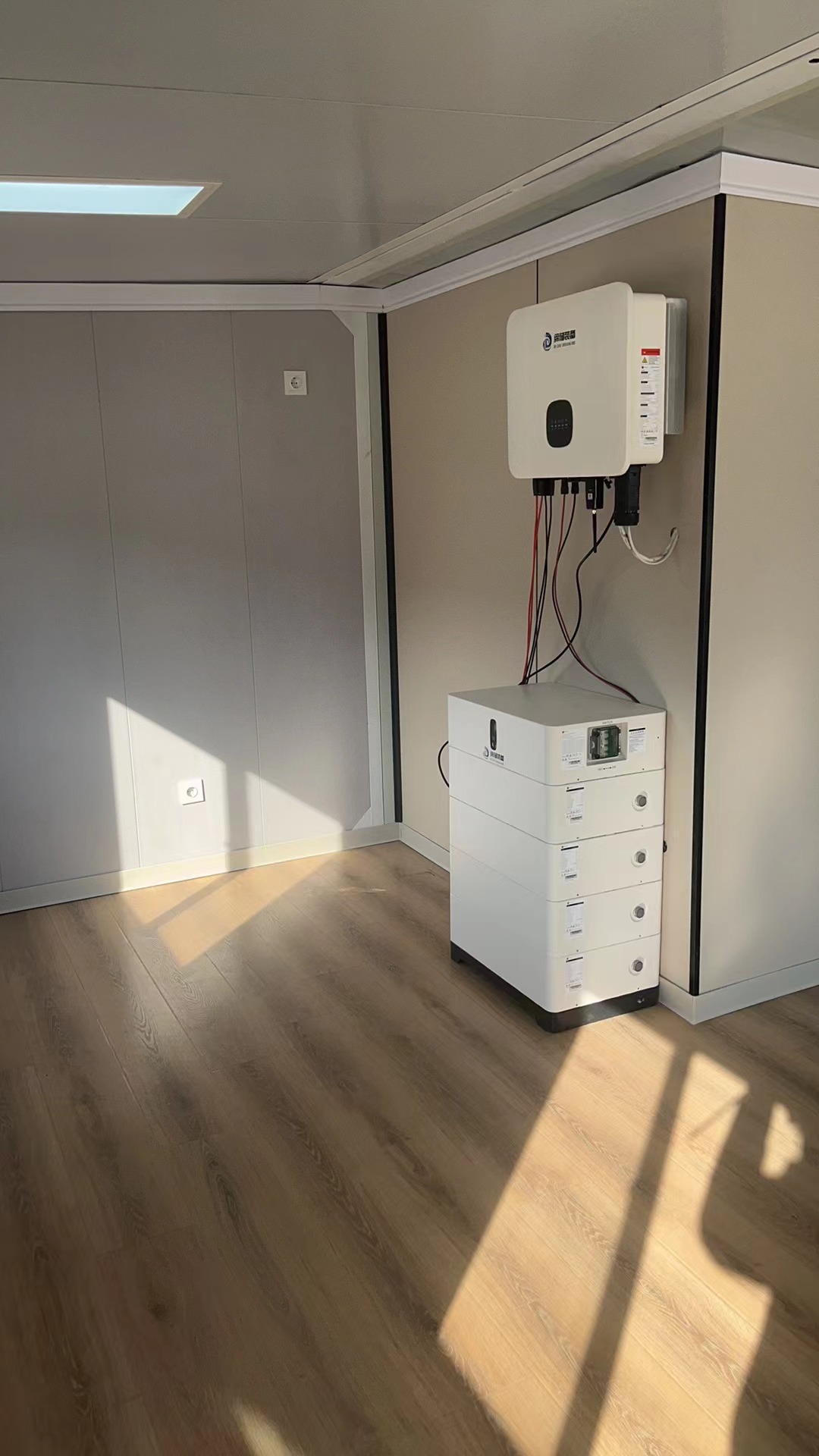

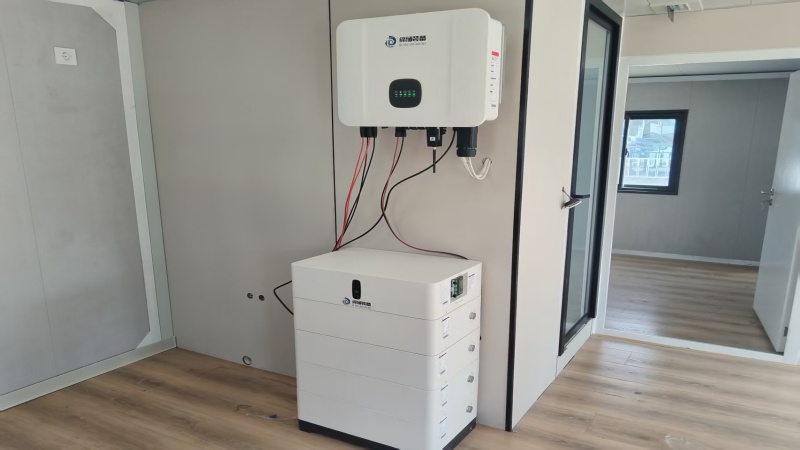

The energy storage system we launched is an intelligent energy solution that integrates lithium iron phosphate batteries and high-performance inverters. It is designed for home, industrial and commercial, microgrids, and source-grid-load-storage scenarios. The light energy storage system adopts a modular design, supports stacking and wall-mounted installation, and flexibly adapts to different space requirements. It also has the characteristics of efficient energy conversion, long life, high safety and intelligent management.
Product Features
Efficient Energy Conversion
Adopting high-quality lithium iron phosphate batteries, the cycle life exceeds 6,000 times and the service life is more than 10 years.
The inverter has a maximum conversion efficiency of more than 98% and supports fast charging and discharging.
Intelligent Management System
The homestay photovoltaic storage intelligent expansion box is equipped with an advanced battery management system (BMS), which monitors the battery status in real time and provides multiple protections such as overvoltage, undervoltage, and overtemperature. It supports multiple communication protocols such as RS485 and CAN, and can be seamlessly integrated with mainstream inverters.
High Safety
Lithium iron phosphate batteries have excellent thermal stability and will not cause thermal runaway even under extreme conditions.
The inverter has a complete fault protection function to ensure the safe operation of the system.
Application scenarios
Home energy storage
Combined with solar panels, store excess energy during the day and use it at night or during power outages.
Provide backup power to ensure that basic household appliances operate normally during power outages.
Industrial and commercial energy storage
Charge when electricity prices are low and discharge during peak hours to reduce electricity costs.
Improve energy efficiency and reduce dependence on the power grid.
Microgrid
Support off-grid and grid-connected operation to improve energy self-sufficiency.
Optimize the use of distributed energy and reduce the instability of new energy generation.
Source-grid-load-storage
Smooth power fluctuations on the power generation side and the user side to improve the quality of the power grid.
Realize primary and secondary frequency modulation control to improve power grid stability
