Light Storage Intelligent Ready-made Modular House

Brand Di Chu Equipment Technology (Shandong) Co., Ltd.

Product origin South of the intersection of 309 National Road and Wanshan Road, Zhuliu Street, Changle County, Weifang City, Shandong Province

Delivery time Production cycle: 15-20 days

Supply capacity Annual output 50,000 sets

1Optical storage smart ready-made modular house green environmental protection, low carbon energy saving
Recyclable, reduce construction waste, and practice sustainable development.
Optical storage off-grid system: solar power generation + energy storage, energy self-sufficiency, reducing carbon emissions.
2. Smart ready-made modular houses with light storage are smart, convenient, comfortable and livable
Modular design, fast construction, flexible combination, short construction period, adaptable to diverse needs.
Smart home system: intelligent lighting, temperature control, security, enhance living comfort and convenience.
Off-grid operation, unrestricted: The photovoltaic storage system guarantees power and is suitable for remote areas or temporary locations.
3. Economical and practical, cost-effective
Light storage smart ready-made houses are inexpensive: packing box houses + light storage systems reduce construction costs.
Easy to maintain: The structure is sturdy and durable, and the later maintenance cost is low.
4. Space optimization, fully functional
Smart ready-made houses with high space utilization: * Meet various needs such as family living and office.
Flexible layout, functional zoning: The room layout can be customized according to needs to enhance the living experience.
5. Optical storage smart ready-made houses are widely used in a variety of scenarios
Tourism and vacation: characteristic homestays, camp hotels, etc.
Emergency relief: Quickly build temporary settlements.
Remote areas: Solve power problems and improve living conditions.
Photovoltaic storage green and intelligent 2-story modular housing, creating an ideal residence for you that is environmentally friendly, intelligent and economical!

Email

Light Storage Intelligent Ready-made Modular House

Product name: Optical storage intelligent ready-made modular house
Product image


Product Detailed Description: This is an innovative product that combines cutting-edge technology and environmental protection concepts - the light storage smart ready-made modular house consists of a top and bottom frame, corner columns, moisture-proof cement board, several interchangeable fireproof insulation wall panels (50 #75 #100 #), high-end easy-to-disassemble doors and windows, and electric distribution. With excellent waterproof, fireproof, and seismic performance, it can be quickly built and disassembled, and can flexibly adapt to a variety of terrains and scenarios.

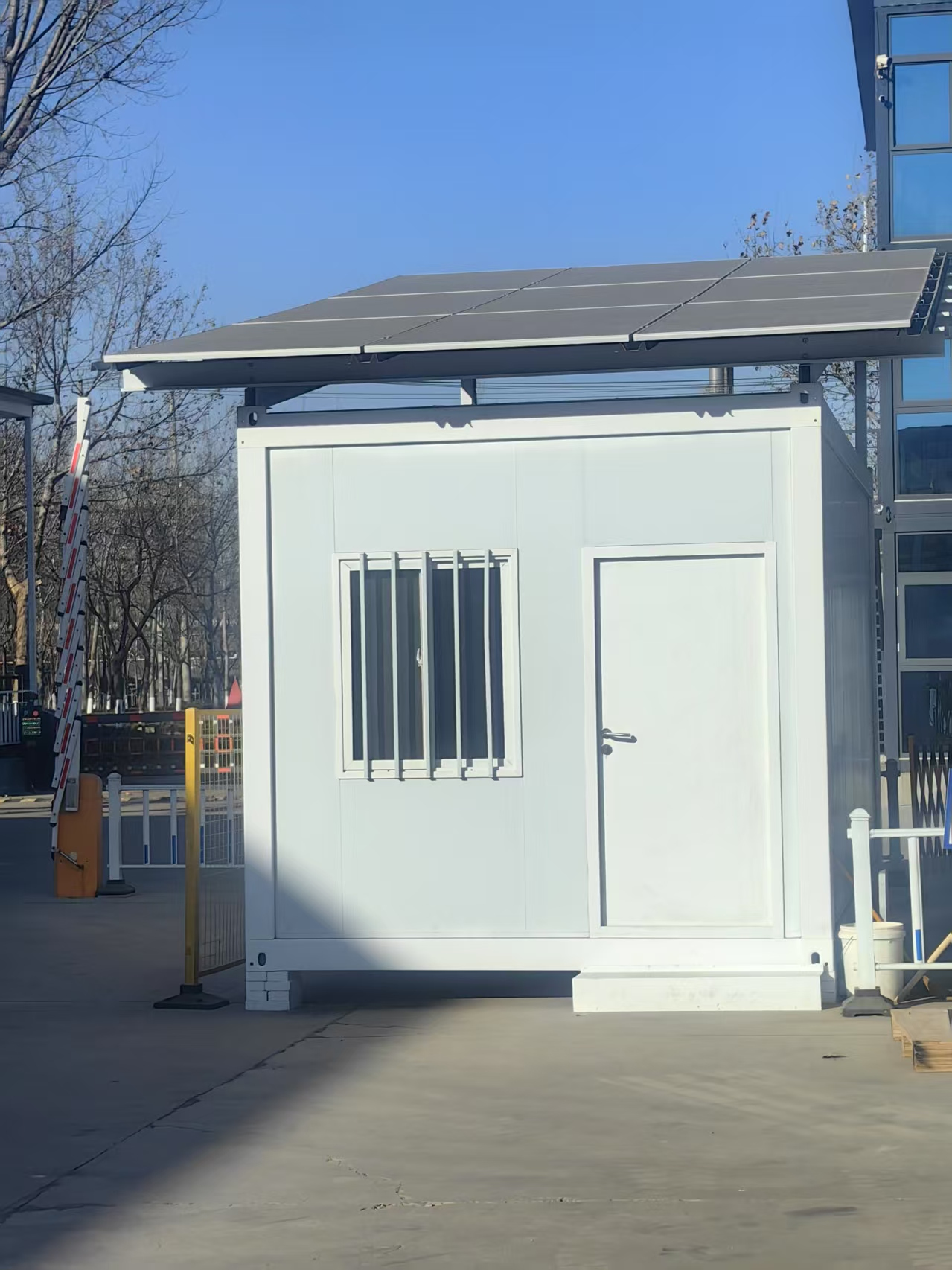

Smart ready-made houses are equipped with high-performance solar photovoltaic panels, installed on the top of the house, convert solar energy into electricity, give priority to solar power generation, and store excess electricity to ensure stable power supply on rainy days or at night, so as to achieve spontaneous self-use of energy without relying on external power grids. Excess electricity can also be sold on the grid, saving long-term electricity costs.

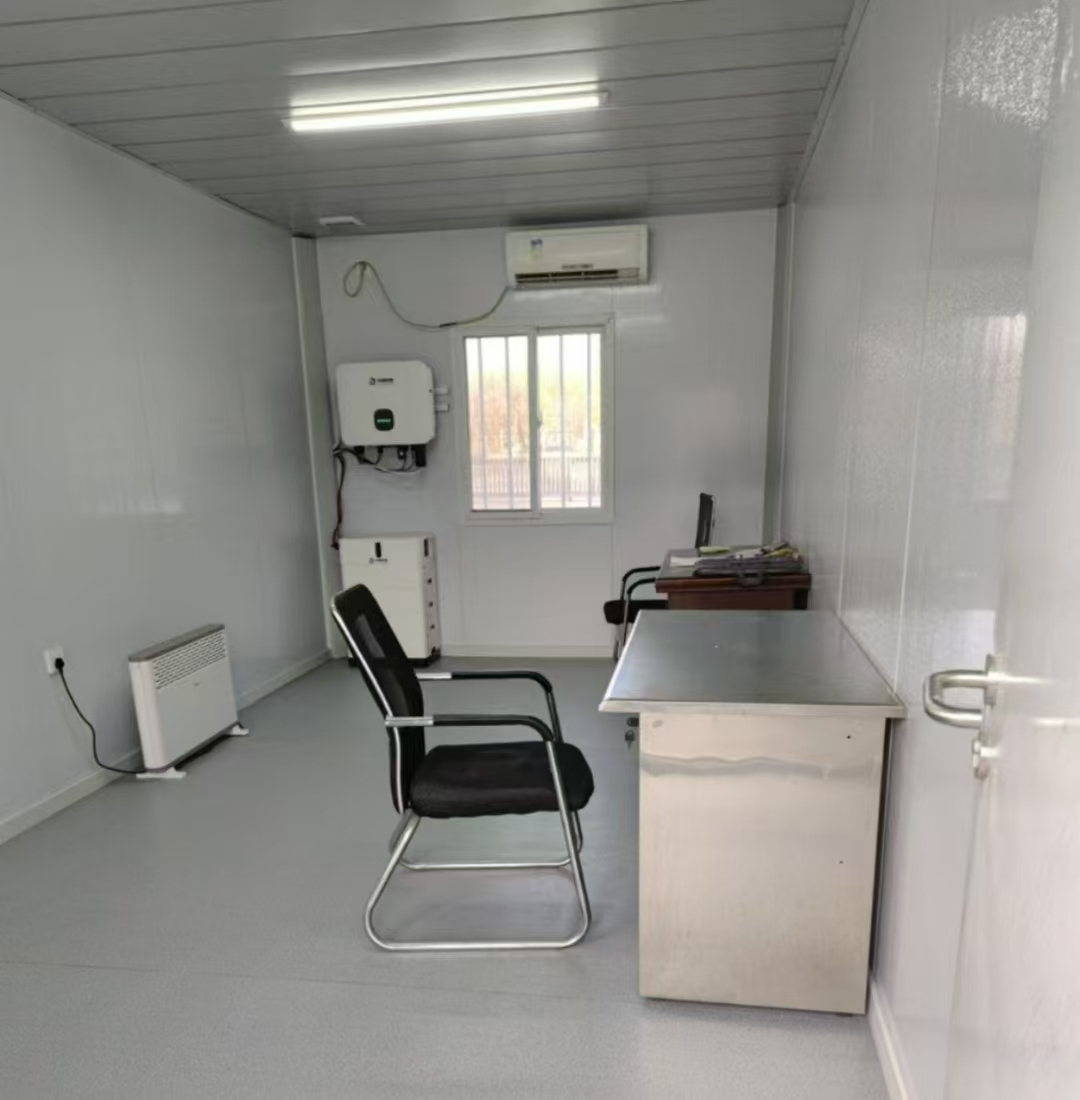

Intelligent management: The solar storage smart ready-made modular house is equipped with an energy management system (EMS) and a battery management system (BMS) to realize intelligent monitoring and management. It has functions such as overcharge protection, overdischarge protection, and temperature monitoring to ensure the stable operation of modular houses in various environments.

Stable power supply: The solar storage intelligent ready-made modular house has the functions of peak cutting and valley filling, frequency regulation and peak regulation, which improves the quality of the power grid and reduces the fluctuation of power consumption on the user side.

Application scenarios: enterprises and institutions, disaster relief, business, conference rooms, field operation barracks, municipal resettlement houses, homestays, military training bases, communication base stations, villas, emergency response, etc., and smart ready-made houses with optical storage.

Smart ready-made modular houses with light storage are low-carbon, green, energy-saving, economical and environmentally friendly, easy to disassemble and assemble, fireproof and heat insulation, long service life, self-sufficiency in electricity, saving electricity bills, reducing carbon emissions, strong mobility, and easy to solve energy and housing problems.

4.Product details: Specifications: 2990mm6055mm2896mm (size, color can be customized)

2438mm5900mm2896mm

Light storage green smart house high-end packaging box (and off-grid solution)
PV installed capacity
name		Size (mm)	power	Quantity (blocks)	otal installed capacity (KWp)
photovoltaic panel			610	9	5.49
installed capacity of energy storage
name					Total installed capacity (KWh)
Energy storage battery pack					20
	Ceiling tile	831 #(0.4mm) new integrated iron ceiling + angle iron


floor	1177 * 2820 * 18Mm asbestos-free floor * 5 pieces

ground	1.6Mm plastic floor

door	High-end wing fire lock door with frame, suitable for 50 #board (970 * 1970)

window	High quality with frame, hollow double glass, double push, anti-theft window (930 * 1130) suitable for 50 #board				(1 set of 2)

Wall panel 950 #	0.4Mm/0.4mm (double orange pattern/double film) wall panel/set				50 #board

Full set of hemming	Galvanized color steel, 4 pcs corner column (width) 4 pcs PVC skirting line

Electric distribution	Brand: Chint, single open * 1, European standard socket * 3, eight-circuit distribution box * 1), 1 set of industrial sockets (large). Main line 4 square meters, air conditioner 4 square meters, socket 2.5 square meters, light line 1.5 square meters, LED lights * 2

accessories	Glue, small pieces, drill tail wire

Remarks: Rooms and photovoltaic storage systems can be customized according to customer needs and requirements

5.Product details pictures and descriptions

Optical storage intelligent ready-made house is a new type of temporary box house, which is made of standard containers as the basic unit, and then transported to the site for assembly through factory prefabricated walls, roofs and other components.

Structure: It is mainly composed of steel structure components such as bases, columns, beams, roofs, walls, etc. The walls and roofs are usually made of color steel composite panels and other materials, which have the functions of heat preservation, heat insulation, and sound insulation.

Features: Convenience: Modular design, factory prefabrication, on-site assembly, can be quickly built, saving construction time, and easy to disassemble and transfer.

Sturdy and durable: Color steel and other materials have high strength and good stability, and are resistant to earthquakes, wind, fire, water, and corrosion. They can withstand severe weather.

Beautiful and elegant: The appearance of green houses can be customized, with a variety of colors and patterns to choose from, simple and elegant, and can be integrated with the surrounding environment.

Reusable: Repeated disassembly and assembly of solar-storage smart ready-made houses does not affect performance, improving resource utilization, reducing costs, and meeting the concept of sustainable development.

Application field Temporary residence: used for construction site worker dormitories, field operation camps, emergency relief temporary resettlement sites, etc., can quickly provide warm and comfortable living places.

Commercial use: Smart ready-made houses can be transformed into shops, restaurants, cafes, offices, etc., with a unique appearance that attracts customers and is more common in tourist attractions, commercial streets, and other places.

Public facilities: Schools, hospitals, and other public institutions can take advantage of their mobility and flexibility to build temporary classrooms, clinics, isolation wards, etc. to meet the needs of special periods.

Environmental protection projects: such as garbage sorting stations, sewage treatment stations, environmental monitoring stations and other facilities, providing convenience for environmental protection.

微信图片_20250219154135.jpg 微信图片_20250219154201.jpg 微信图片_20250219154224.jpg 微信图片_20250219154208.jpg

Monocrystalline silicon photovoltaic panel is an efficient and stable solar power generation equipment, which is made of monocrystalline silicon material and is widely used in photovoltaic power generation systems. Its core advantages lie in high photoelectric conversion efficiency, excellent low light performance and long life, making it an important part of modern clean energy.

微信图片_20250219165809.png 微信图片_20250219165246.png

Our energy storage system is an intelligent energy solution that integrates lithium iron phosphate batteries and high-performance inverters. It is specially designed for households, businesses, microgrids and source grid loading and storage scenarios. The light energy storage system adopts a modular design, supports stacking and wall-mounted installation, flexibly adapts to different space needs, and has the characteristics of efficient energy conversion, long life, high security and intelligent management

Provide backup power to ensure the normal operation of basic household appliances in the event of a power outage.

Industrial and commercial energy storage

Charge when the electricity price is low, discharge when the peak, and reduce the cost of electricity.

Improve energy efficiency and reduce dependence on the power grid.

microgrid

Support off-grid and grid-connected operations to enhance energy self-sufficiency.

Optimize the use of distributed energy and reduce the instability of new energy generation.

source network load and storage

Smooth power fluctuations on the power generation side and the user side to improve the quality of the power grid.

Realize primary and secondary frequency modulation control to enhance power grid stability

微信图片_20250219155145.jpg 微信图片_20250219155154.jpg 微信图片_20250219155200.jpg 微信图片_20250219150504.jpg

Product Tag:

Light storage green intelligent modular container house Light storage intelligent ready-made houses
