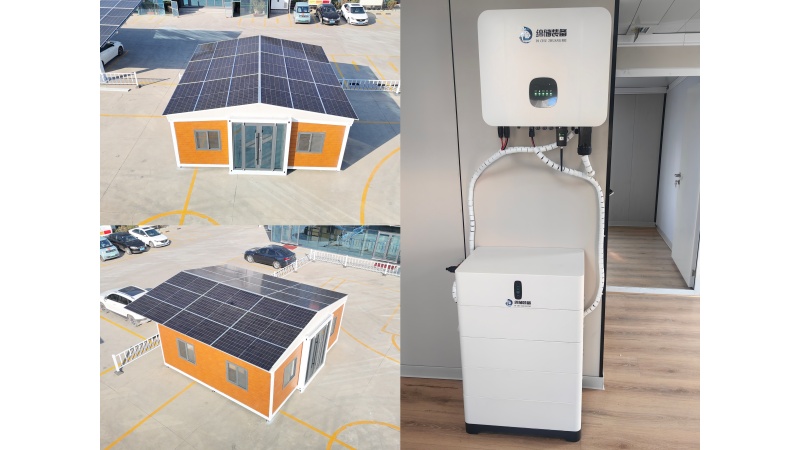

Light Storage Intelligent 2-bedroom 4-bedroom Modular House
Brand Dichu Equipment Technology (Shandong) Co., Ltd.
Product origin Weifang, China
Delivery time 15-20 days (can be expedited)
Supply capacity Annual production: 10,000 sets
Product highlights of the photovoltaic storage smart 2-bedroom and 4-bedroom modular house
Photovoltaic storage smart modular house, unlocking a new experience of diversified living
Flexible space, customized at will
Two types of 2-bedroom and 4-bedroom units meet the diversified living needs of singles, small families, and multi-generational households. The modular design allows the space to be freely combined and the room layout can be flexibly adjusted, such as converting the second bedroom into a study or gym, which can easily cope with changes in life scenes.
Photovoltaic storage integrated, green and energy-saving
The roof of the photovoltaic storage double-width mobile house is equipped with high-efficiency photovoltaic panels with high conversion efficiency. It can efficiently convert solar energy into electrical energy to meet the needs of daily lighting and home appliance use. Matching large-capacity energy storage batteries, storing excess electricity during the day, releasing it at night or on cloudy days, achieving energy self-sufficiency, reducing dependence on traditional power grids, and practicing the concept of green and low-carbon life.
Technology empowers, smart life
The double-width mobile house with internal light storage is equipped with a smart home system. Through the mobile phone APP or voice commands, you can remotely control the lights, curtains, air conditioners and other equipment. Turn on the air conditioner in advance before getting home to create a comfortable room temperature. It can also monitor the indoor temperature and humidity, air quality in real time, and automatically adjust to create a healthy and comfortable living environment.
The double-width mobile house with light storage is easy to install and move at will
Prefabricated in the factory and assembled on site, it is as simple as building blocks, with a short construction period, which can greatly save time and labor costs. The bottom is equipped with rollers or lifting points for easy mobile transportation, whether it is changing the site or using it for temporary buildings, it can be easily achieved.
Product name: Solar storage intelligent 2 bedroom 4 bedroom modular house

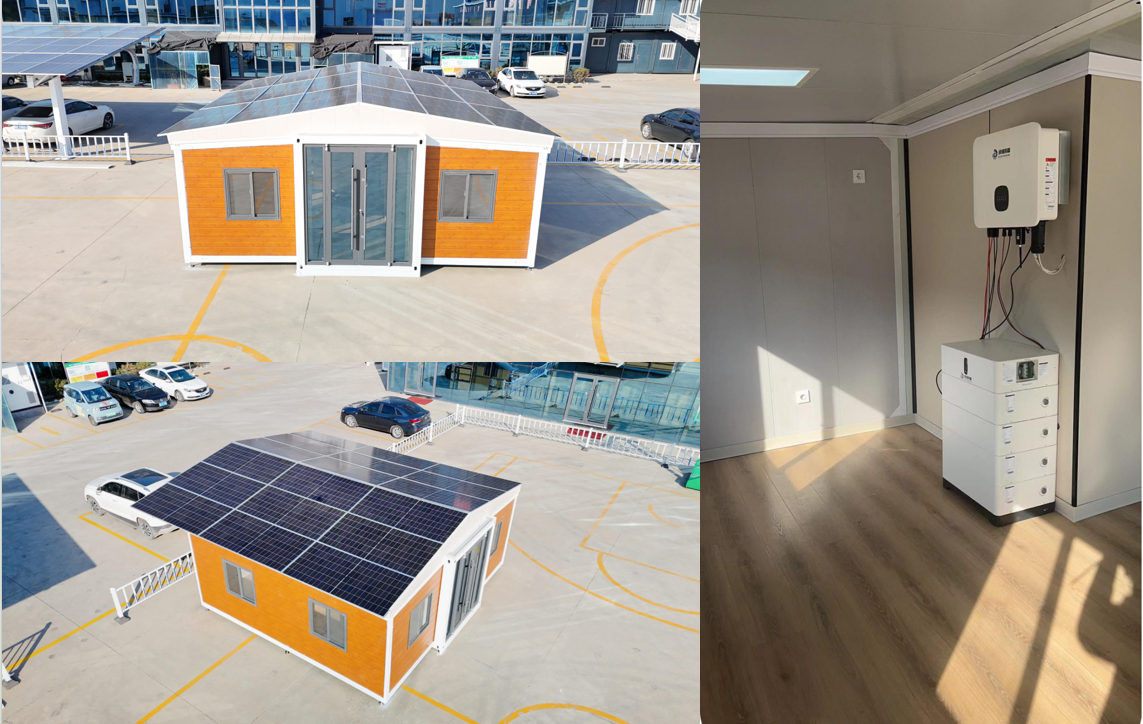

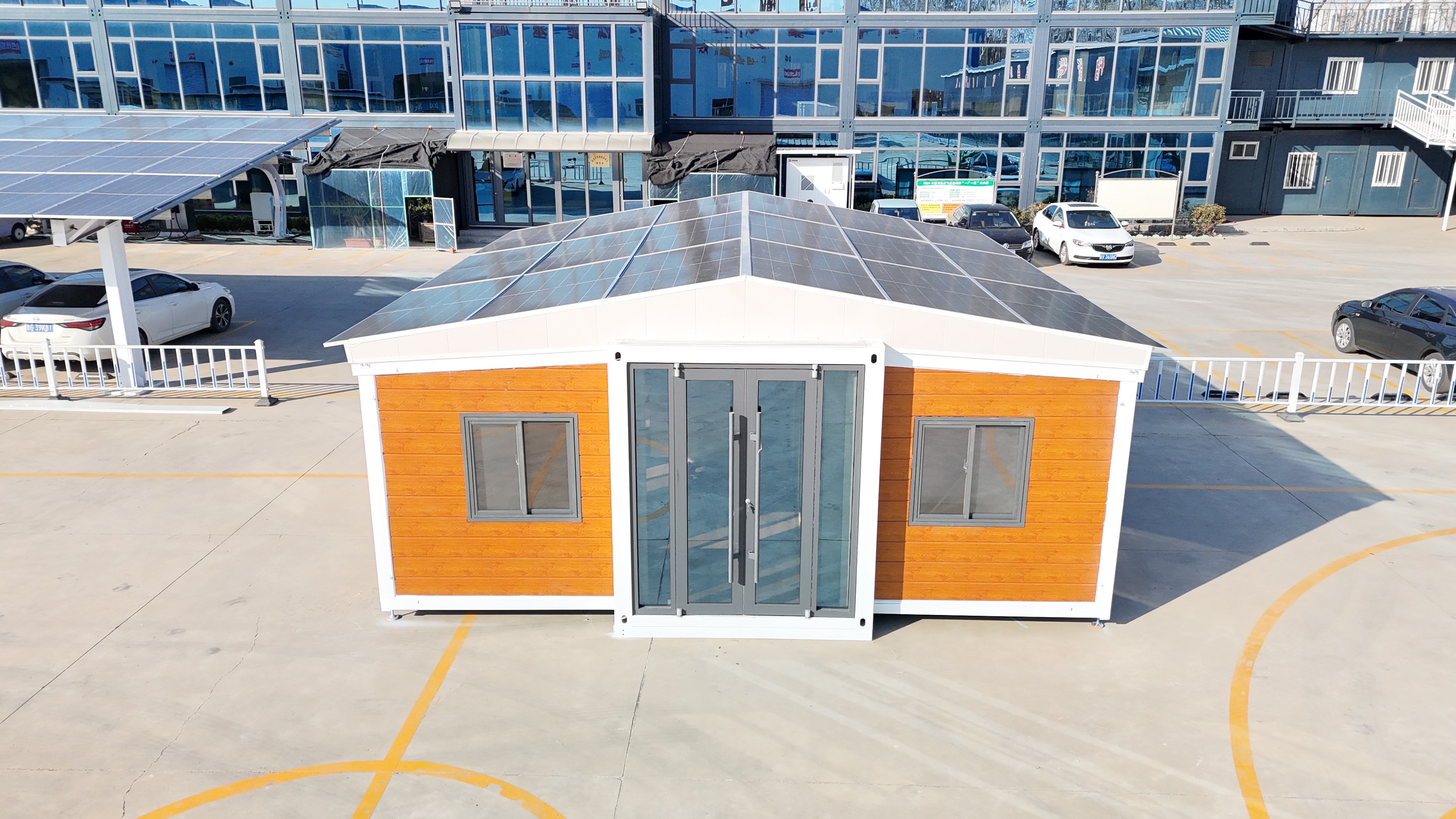

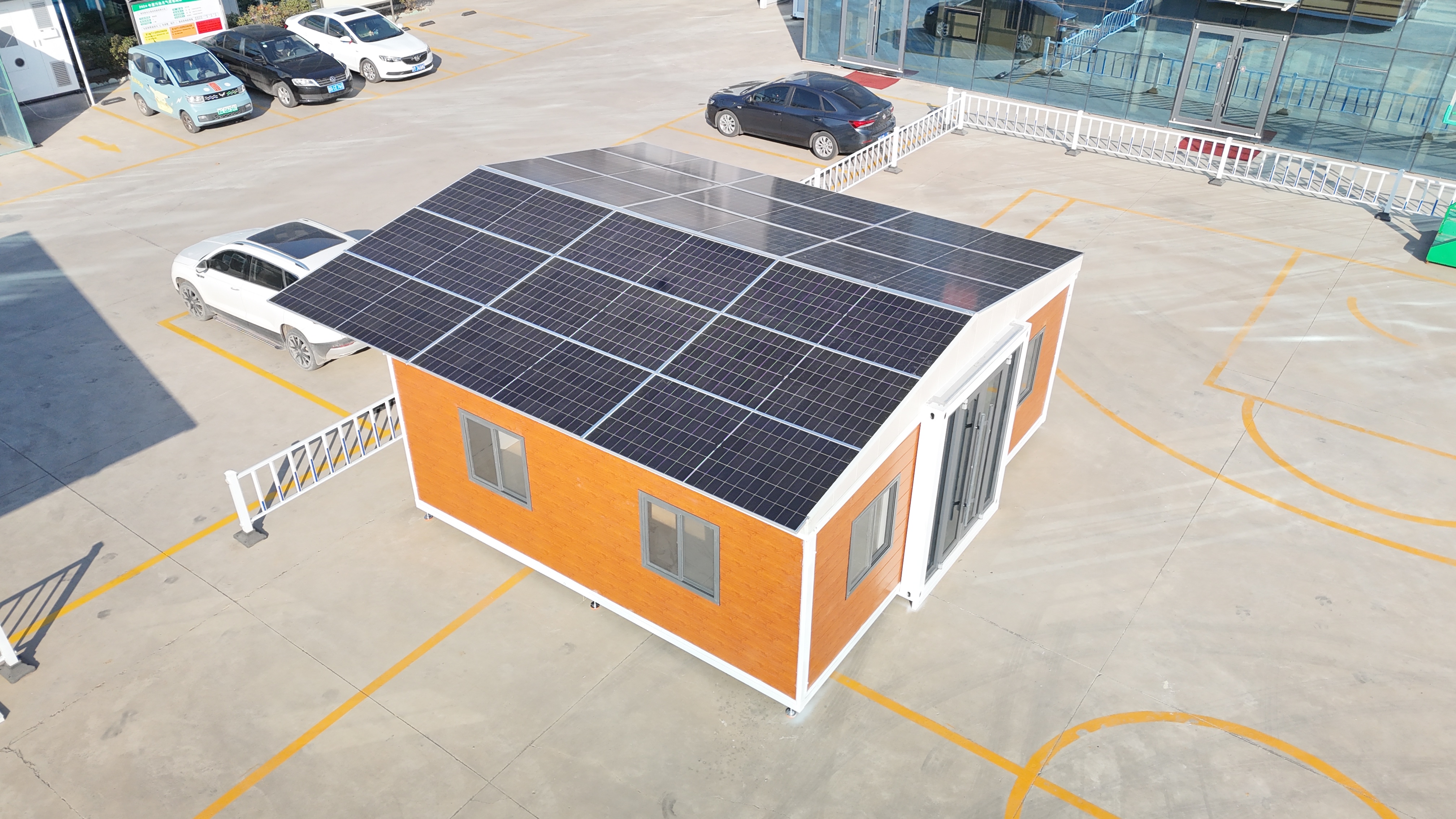

Product images
3. Product Detailed Description:
The 2-bedroom modular house with photovoltaic storage is an innovative residential solution that integrates a double-wing expansion box house and a photovoltaic energy storage integrated system. It not only meets the needs of modern people for flexible living space, but also realizes an efficient and environmentally friendly lifestyle through green energy technology.
Product Features:
The 2-bedroom modular house with photovoltaic storage uses high-quality steel and an innovative folding design. Through the double-wing unfolding mechanism, the house area can be more than doubled in a short time. It can be made into 2 bedrooms and 1 living room, 3 bedrooms and 1 living room, and the layout is diverse. The appearance color, pattern and material can be customized according to user needs to meet different aesthetic and functional needs.
2. Photovoltaic energy storage integrated system: green energy
The double-width mobile house with photovoltaic storage is equipped with high-performance solar photovoltaic panels, which are installed on the top of the house to convert solar energy into electrical energy, give priority to solar power generation, and store excess electricity to ensure stable power supply on rainy days or at night, so as to realize self-generation and self-use of energy without relying on the external power grid. Excess electricity can also be sold on the grid, saving electricity costs in the long term.
Intelligent management: The double-width photovoltaic storage mobile house is equipped with an energy management system (EMS) and a battery management system (BMS) to achieve intelligent monitoring and management. It has functions such as overcharge protection, over-discharge protection, and temperature monitoring to ensure stable operation in various environments.
Stable power supply: The double-width photovoltaic storage mobile house has the functions of peak shaving and valley filling, frequency modulation and peak shaving, which improves the quality of the power grid and reduces the fluctuation of power consumption on the user side.
Application scenarios: enterprises and institutions, disaster relief, business, conference rooms, field operation barracks, municipal resettlement housing, homestays, military training bases, communication base stations, villas, emergency, etc.
Advantages of double-width photovoltaic storage mobile houses: low carbon, green, energy-saving, economical and environmentally friendly, easy to disassemble and assemble, fireproof and heat-insulating, long service life, self-sufficient electricity, saving electricity bills, reducing carbon emissions, strong mobility, and easy solution to energy and living problems. All products can provide customized services
4.Product details parameters: Specifications and models：
Unfolded size: length 5900 (11380) mm * width 6300 mm * height 2480 mm
Folded size: length 5900 (11380) mm * width 2200 mm * height 2480 mm
| Product Name | Light storage green smart house (20HQ double-wing expansion box) | ||||
| Dimensions before expansion (external dimensions) | Length 5900mm, width 2200mm, height 2480mm | ||||
| Expanded dimensions (external dimensions) | Length 5900mm, width 6300mm, height 2480mm | ||||
| Area | 37.17㎡ | ||||
| Approximate total weight | 4.5 tons (estimated) | ||||
| Photovoltaic installed capacity | size（mm） | power（Wp) | Quantity (blocks) | Total installed capacity（kWp) | Double-slope pointed roof with 18 photovoltaic panels fully covered and off-grid solution |
| Photovoltaic panels | 610 | 18 | 10.98 | ||
| Energy storage installed capacity | Total installed capacity（kWh) | ||||
| Energy storage battery pack | 20 | ||||
| Bathroom Hardware | |||||
| 18 | toilet | Brand toilet*1 set | |||
| 19 | Shower | Handheld showerhead*1 set | |||
| 20 | Cabinet Basin | Ordinary mirror cabinet ceramic integrated basin * 1 set | |||
| 21 | Water supply and drainage | Water supply and drainage*1 set | |||
| Solar storage green smart house 20HQ expansion box (1 room, 1 living room, 1 bathroom): | |||||
5
.Product details pictures and description
The modular design of the double-width mobile house of Guangchu: It adopts standardized modules, each module has independent functions and can be freely combined. It can flexibly increase or decrease or adjust the modules according to different needs, such as space size, functional layout, etc., and easily realize the transformation from a single residence to a multi-person activity space, meeting various scenarios, whether it is field scientific research, emergency rescue, or temporary building construction in scenic spots.
Movable design: The double-width mobile house of Guangchu is equipped with convenient handling interfaces and lifting points, and rollers or slide rails are installed at the bottom, which is convenient for moving and transporting with the help of forklifts, cranes and other equipment. The connection between modules is stable during transportation, which can adapt to various road conditions. After arriving at the destination, it can be quickly assembled and put into use.
Shell material: The double-width mobile house of Guangchu is made of high-quality steel with high strength, which can effectively reduce the overall weight and facilitate mobility. It also has good corrosion resistance and can be used for a long time in harsh environments. The surface is specially treated to enhance wear resistance and oxidation resistance.
Monocrystalline silicon photovoltaic panel is an efficient and stable solar power generation equipment, which is made of monocrystalline silicon material and is widely used in photovoltaic power generation systems. Its core advantages lie in high photoelectric conversion efficiency, excellent low light performance and long life, making it an important part of modern clean energy.
The energy storage system we launched is an intelligent energy solution that integrates lithium iron phosphate batteries and high-performance inverters. It is designed for home, industrial and commercial, microgrids, and source-grid-load-storage scenarios. The light energy storage system adopts a modular design, supports stacking and wall-mounted installation, and flexibly adapts to different space requirements. It also has the characteristics of efficient energy conversion, long life, high safety and intelligent management.
Product Features
Efficient energy conversion
Adopt high-quality lithium iron phosphate batteries, with a cycle life of more than 6,000 times and a service life of more than 10 years.
The inverter has a maximum conversion efficiency of more than 98% and supports fast charging and discharging.
Intelligent management system
The double-width mobile house with solar storage is equipped with an advanced battery management system (BMS), which monitors the battery status in real time and provides multiple protections such as overvoltage, undervoltage, and overtemperature. It supports multiple communication protocols such as RS485 and CAN, and can be seamlessly integrated with mainstream inverters.
High safety
Lithium iron phosphate batteries have excellent thermal stability and will not cause thermal runaway even under extreme conditions.
The inverter has a complete fault protection function to ensure the safe operation of the system.
Application scenarios
Home energy storage
Combined with solar panels, store excess energy during the day and use it at night or during power outages.
Provide backup power to ensure that basic household appliances operate normally during power outages.
Industrial and commercial energy storage
Charge when electricity prices are low and discharge during peak hours to reduce electricity costs.
Improve energy efficiency and reduce dependence on the power grid.
Microgrid
Support off-grid and grid-connected operation to improve energy self-sufficiency.
Optimize the use of distributed energy and reduce the instability of new energy generation.
Source-grid-load-storage
Smooth power fluctuations on the power generation side and the user side to improve the quality of the power grid.
Realize primary and secondary frequency modulation control to improve power grid stability
