Light Storage Green Intelligent Modern Modular Housing

Brand Di Chu Equipment Technology (Shandong) Co., Ltd.

Product origin South of the intersection of 309 National Road and Wanshan Road, Zhuliu Street, Changle County, Weifang City, Shandong Province

Delivery time Production cycle: 15-20 days

Supply capacity Annual output 50,000 sets

1. Green, environmentally friendly, low-carbon, and energy-saving The green, intelligent, and modern modular housing with photovoltaic and energy storage adopts a photovoltaic and energy storage off-grid system: it utilizes solar power generation, coupled with an energy storage system, to achieve energy self-sufficiency and reduce carbon emissions.
ntelligent, convenient, comfortable and livable Light storage green
2. intelligent modern modular housing: modular design, fast construction: the packaging box room can be flexibly combined, the construction period is short, and it meets diverse needs. Smart home system: equipped with intelligent lighting, temperature control, security and other systems to enhance living comfort and convenience. Off grid operation, unrestricted: The photovoltaic storage system ensures power supply and is suitable for remote areas or temporary locations.
3. Economical and practical, with high cost-effectiveness Light storage green intelligent modern modular housing has low cost: the cost of packaging box houses and light storage systems is relatively low, reducing the construction cost of houses. Easy to maintain: The structure is sturdy and durable, with low maintenance costs in the later stages.
4. Widely applicable and diverse scenarios Tourism and vacation: creating characteristic homestays, campsite hotels, etc. Emergency relief: Quickly set up temporary resettlement sites. Remote areas: solving power supply problems and improving living conditions. Light storage green intelligent modern modular housing, creating an ideal modern housing that is environmentally friendly, intelligent, and economical for you! All products can provide customized services

Email

Light Storage Green Intelligent Modern Modular Housing

Light storage green intelligent modern modular housing

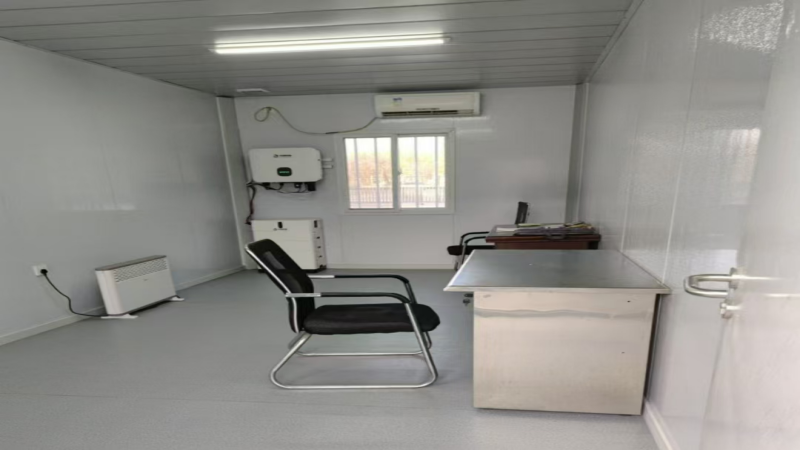

Product image


3. Product Detailed Description: This is an innovative product that combines cutting-edge technology and environmental protection concepts - the light storage green smart house consists of a top and bottom frame, corner columns, moisture-proof cement board, several interchangeable fireproof thermal insulation wallboards (50 #75 #100 #), high-end easy-to-disassemble doors and windows, and electric distribution of electrostatic spraying technology. It has excellent waterproof, fireproof and seismic performance and can be quickly built and disassembled, flexibly adapting to a variety of terrains and scenarios

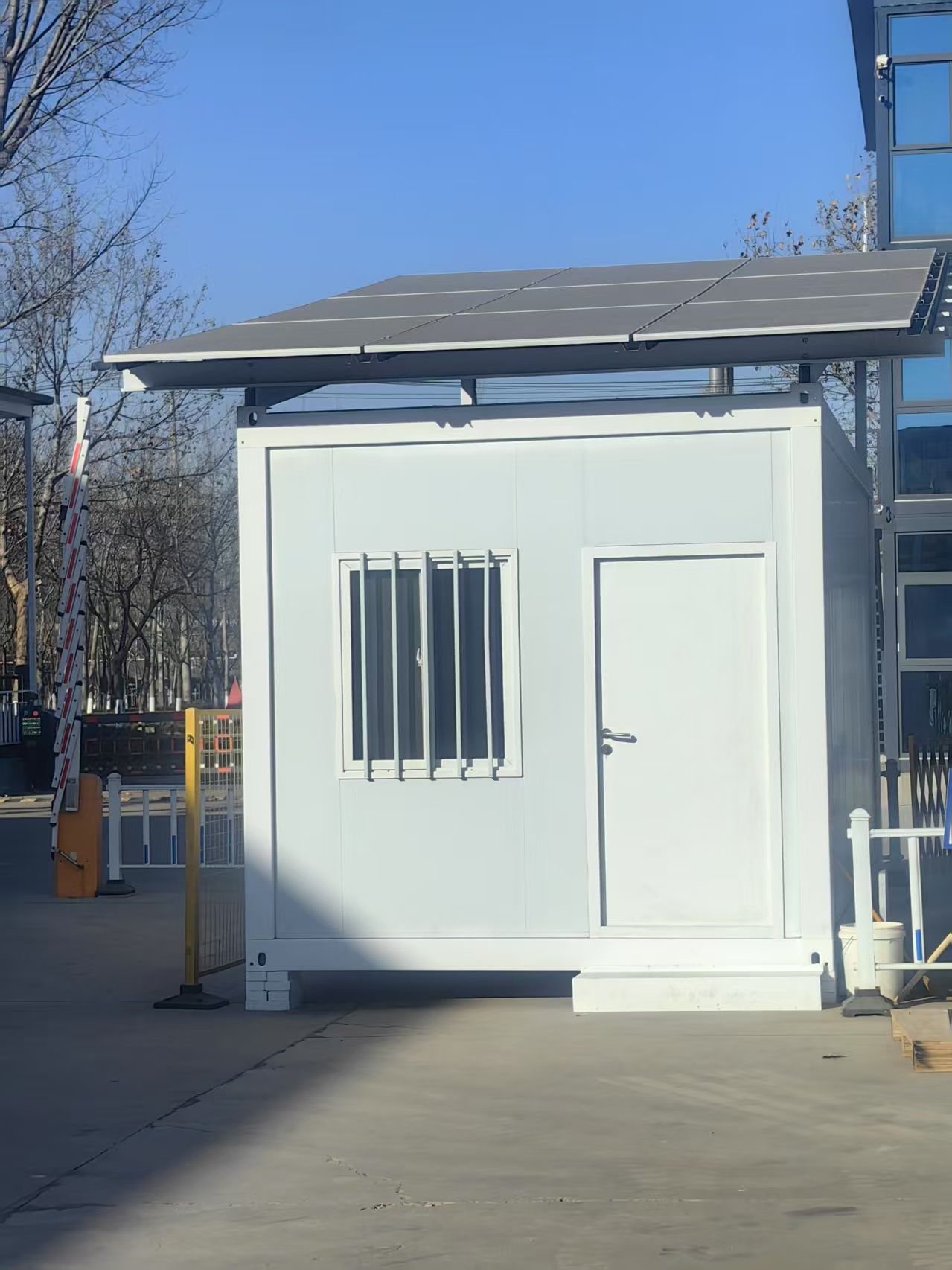

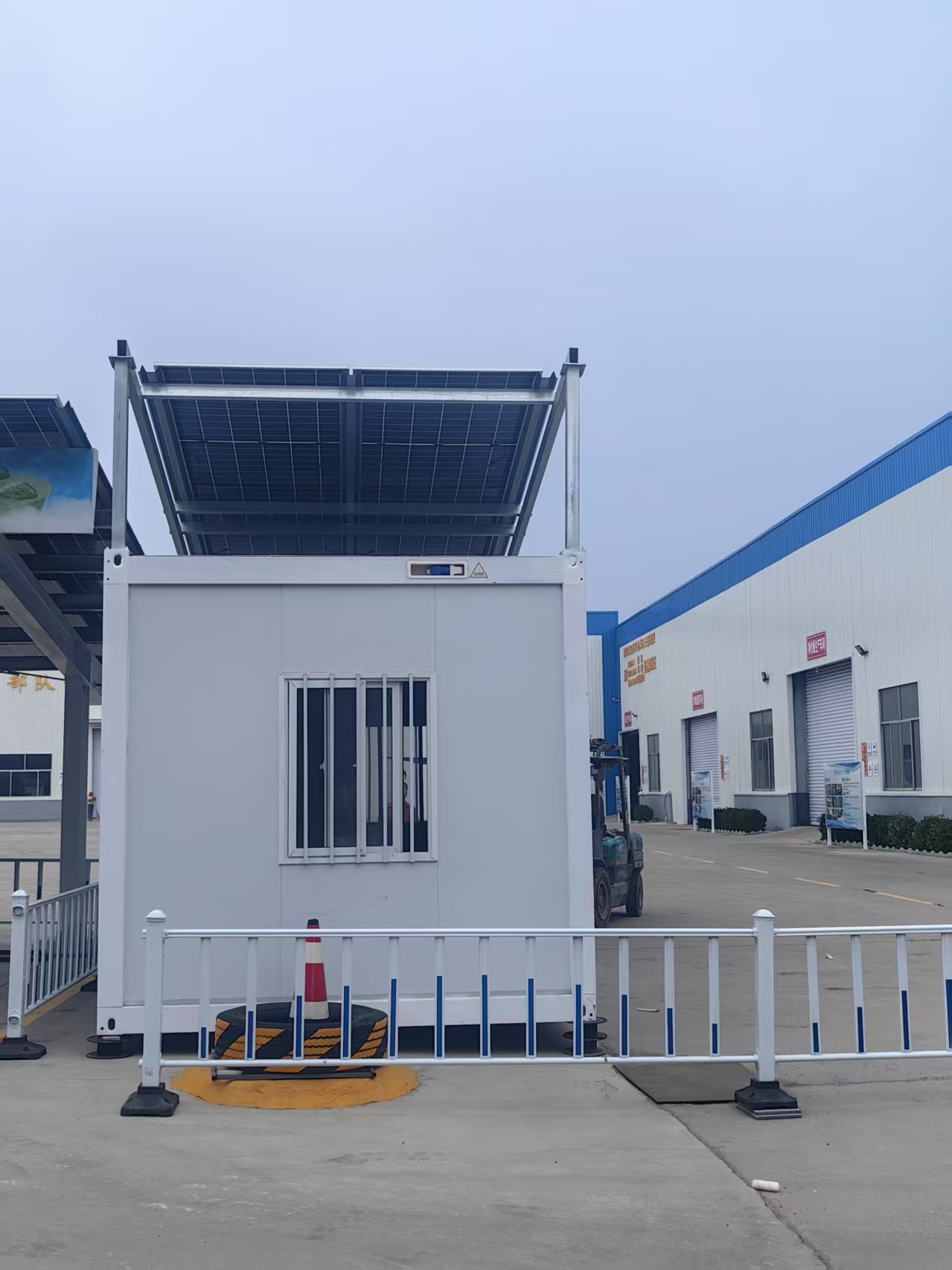

The light and light storage green smart house is equipped with high-performance solar photovoltaic panels, installed on the top of the house, converts solar energy into electricity, preferentially uses solar power generation, and stores excess electricity to ensure that the power supply can be stable on rainy days or at night, and realizes the spontaneous self-use of energy. There is no need to rely on the external power grid. The excess electricity can also be sold on the grid, saving electricity costs in the long run. Intelligent management: Modern houses are equipped with energy management systems (EMS) and battery management systems (BMS) to realize intelligent monitoring and management. With functions such as overcharge protection, overdischarge protection, temperature monitoring, etc., to ensure the stable operation of modular houses in various environments.

Stable power supply: It has the functions of peak cutting and valley filling, frequency regulation and peak regulation, which improves the quality of the power grid and reduces the fluctuation of power consumption on the user side.

Application scenarios: enterprises and institutions, disaster relief, business, conference rooms, field operation barracks, municipal resettlement houses, homestays, military training bases, communication base stations, villas, emergency response, etc., modular housing.

Low-carbon, green, energy-saving, economical and environmentally friendly, easy to disassemble and assemble, fireproof and heat insulation, long service life, self-sufficiency in electricity, saving electricity bills, reducing carbon emissions, strong mobility, easy to solve energy and housing problems.

4.Product details：

Light storage green smart house high-end packaging box (and off-grid solution)
PV installed capacity
name		Size (mm)	Power (Wp)	Quantity (blocks)	Total installed capacity (KWp)
photovoltaic panel			610	9	5.49
installed capacity of energy storage
name					Total installed capacity (KWh)
Energy storage battery pack					20

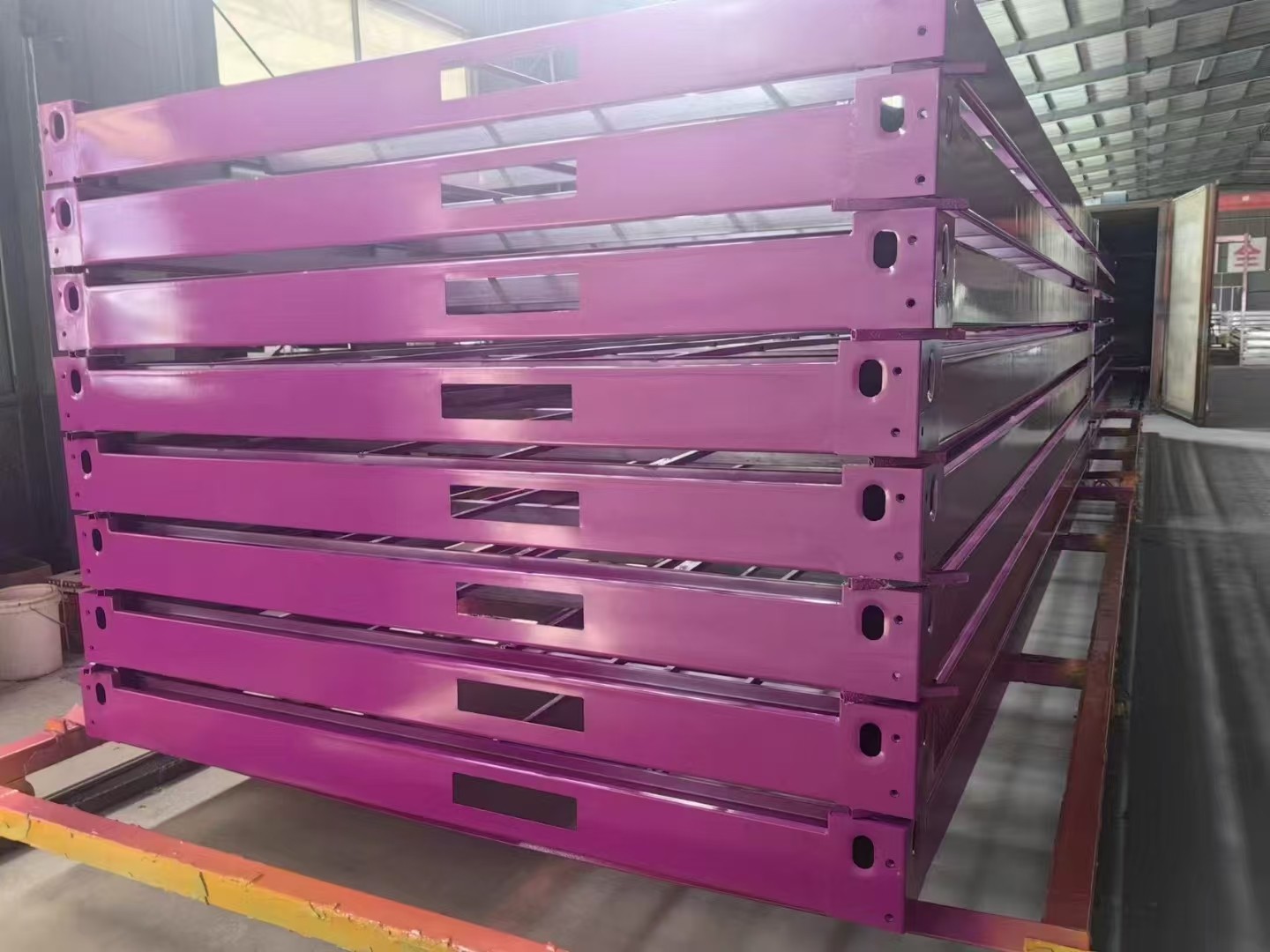

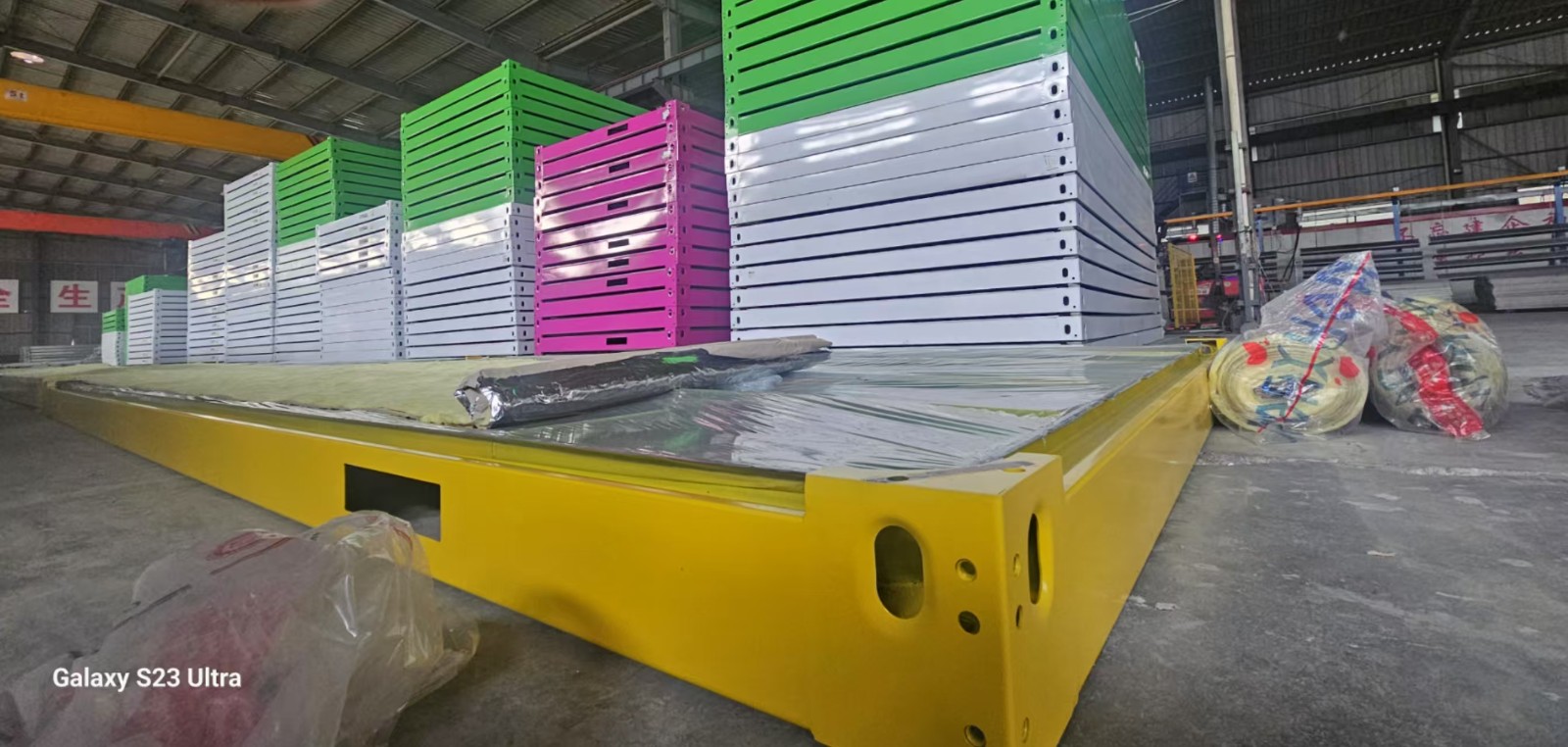

Frame part (5900mm * 2438mm * 2896m) (thickness ± 0.2)	top frame	Galvanized roller rolling steel upper beam 170 #* 5580mm * 2, 180 #* 2700mm * 2, 4 galvanized large hangers, top secondary beam 80 * 40 square tube * 1.2 thick * 7, 30 * 30 square tube * 1.0 thick * 4 high temperature 200 degrees electrostatic spraying process (white/gray/green/brown/blue, etc.)			2.5 Framework 5.9 meters direction plus 1 channel of 30 square pipes

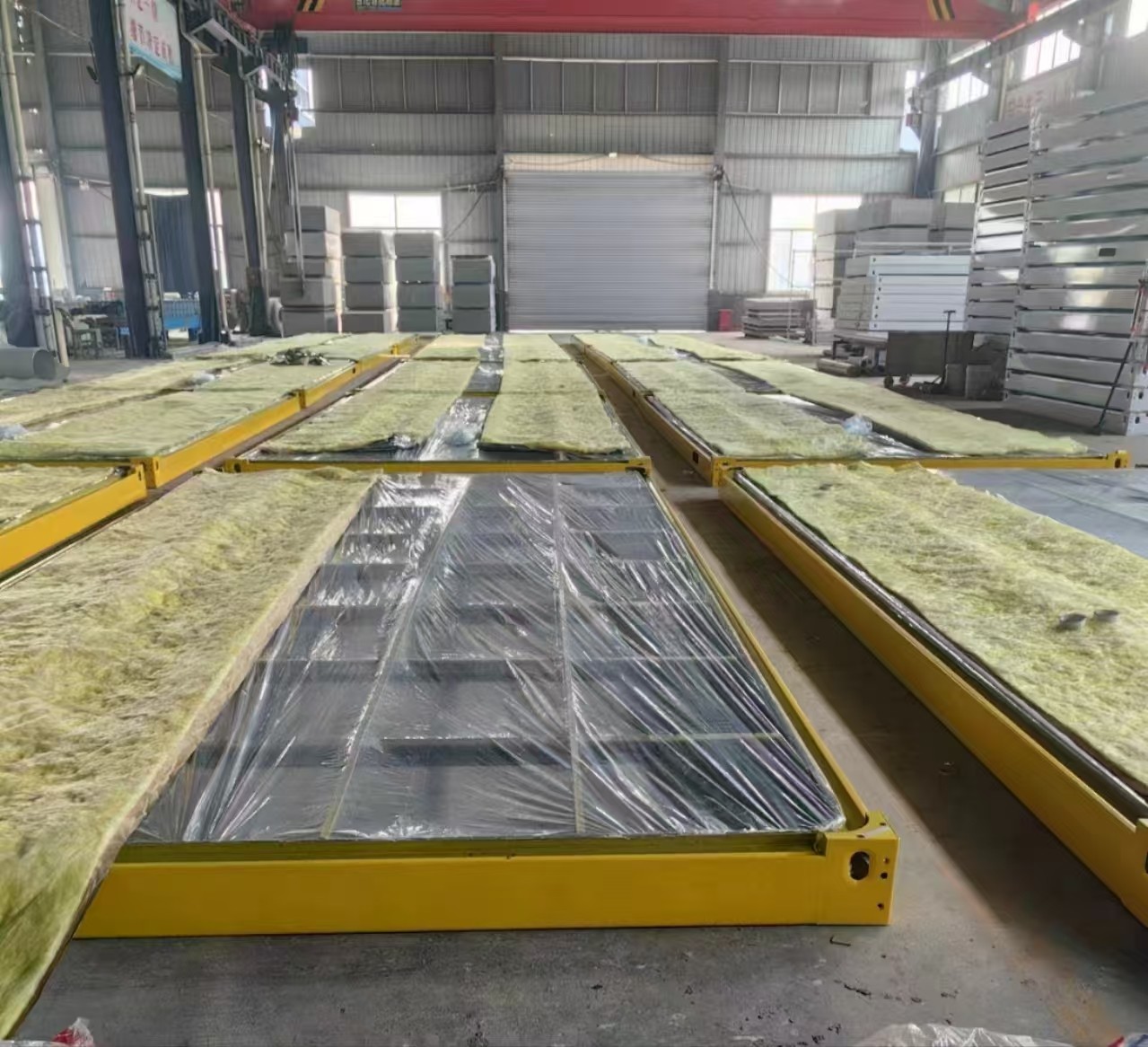

	bottom frame	Galvanized roller rolling steel, lower beam 160 #* 5580mm * 2, 160 #* 2700mm * 2, galvanized large hanging head 4, bottom secondary beam square pipe 50 * 100 * 1.2 thick * 14, with downpipe, with 50 #backwater S groove
	column	Galvanized roller rolling steel, 150mm210mm2526mm*4, L-shaped folding, with bolt sleeve, with hexagonal bolt high temperature 200 degrees electrostatic spraying process (white/gray/green/brown/blue, etc.)
	cap	Galvanized color steel plate 0.5mm thick, 995 high-quality structural glue at the interface, corner occlusion, containing butyl tape waterproof 75 #glass wool, PE moisture-proof protective film, A-grade fire protection, no rain leakage
	Ceiling tile	831 #(0.4mm) new integrated iron ceiling + angle iron


floor	1177 * 2820 * 18Mm asbestos-free floor * 5 pieces

ground	1.6Mm plastic floor

door	High-end wing fire lock door with frame, suitable for 50 #board (970 * 1970)

window	High quality with frame, hollow double glass, double push, anti-theft window (930 * 1130) suitable for 50 #board				(1 set of 2)

Wall panel 950 #	0.4Mm/0.4mm (double orange pattern/double film) wall panel/set				50 #board

Full set of hemming	Galvanized color steel, 4 pcs corner column (width) 4 pcs PVC skirting line

Electric distribution	Brand: Chint, single open * 1, European standard socket * 3, eight-circuit distribution box * 1), 1 set of industrial sockets (large). Main line 4 square meters, air conditioner 4 square meters, socket 2.5 square meters, light line 1.5 square meters, LED lights * 2

accessories	Glue, small pieces, drill tail wire

Remarks: Rooms and photovoltaic storage systems can be customized according to customer needs and requirements

Product details pictures and descriptions

The packing box house is a new type of temporary box house, which is made of standard containers as the basic unit, and is then transported to the site for assembly through factory prefabricated walls, roofs and other components.

Structure: It is mainly composed of steel structure components such as bases, columns, beams, roofs, walls, etc. The walls and roofs are usually made of color steel composite panels and other materials, which have the functions of heat preservation, heat insulation, and sound insulation.

Features: Convenience: Modular design, factory prefabrication, on-site assembly, can be quickly built, saving construction time, and easy to disassemble and transfer.

Sturdy and durable: Color steel and other materials have high strength and good stability, and are resistant to earthquakes, wind, fire, water, and corrosion. They can withstand severe weather.

Beautiful and elegant: The appearance can be customized, with a variety of colors and patterns to choose from, simple and elegant, and can be integrated with the surrounding environment.

Reusable: Repeated disassembly and assembly do not affect performance, improve resource utilization, reduce costs, and comply with the concept of sustainable development.

Application field Temporary residence: used for construction site worker dormitories, field operation camps, emergency relief temporary resettlement sites, etc., can quickly provide warm and comfortable living places.

Commercial use: It can be transformed into shops, restaurants, cafes, offices, etc., and its unique appearance attracts customers. It is more common in tourist attractions, commercial streets, and other places.

Public facilities: Schools, hospitals, and other public institutions can take advantage of their mobility and flexibility to build temporary classrooms, clinics, isolation wards, etc. to meet the needs of special periods.

Environmental protection projects: such as garbage sorting stations, sewage treatment stations, environmental monitoring stations and other facilities, providing convenience for environmental protection.

微信图片_20250219154135.jpg 微信图片_20250219154201.jpg 微信图片_20250219154224.jpg 微信图片_20250219154208.jpg

Monocrystalline silicon photovoltaic panel is an efficient and stable solar power generation equipment, which is made of monocrystalline silicon material and is widely used in photovoltaic power generation systems. Its core advantages lie in high photoelectric conversion efficiency, excellent low light performance and long life, making it an important part of modern clean energy.

微信图片_20250219165809.png 微信图片_20250219165246.png

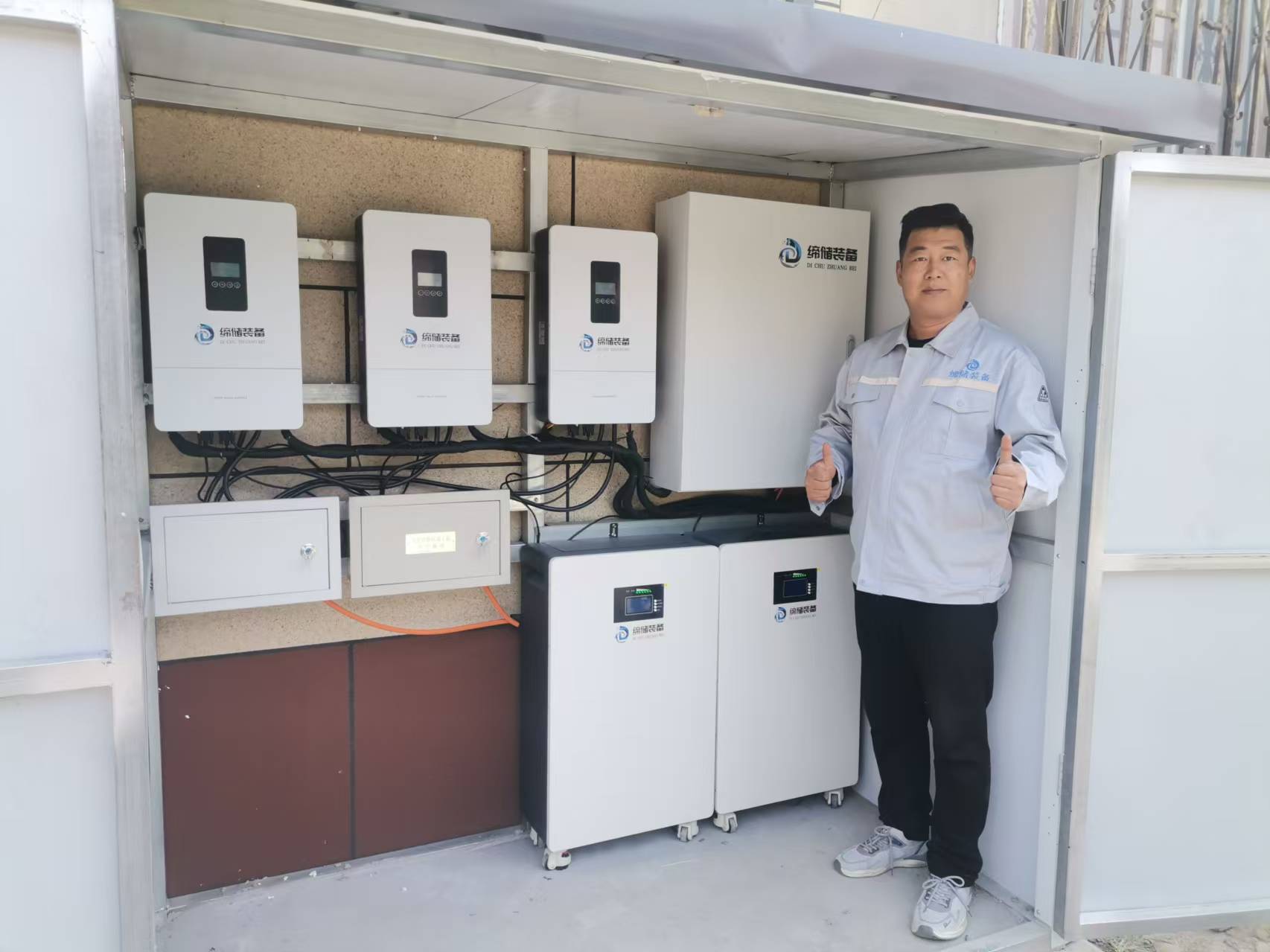

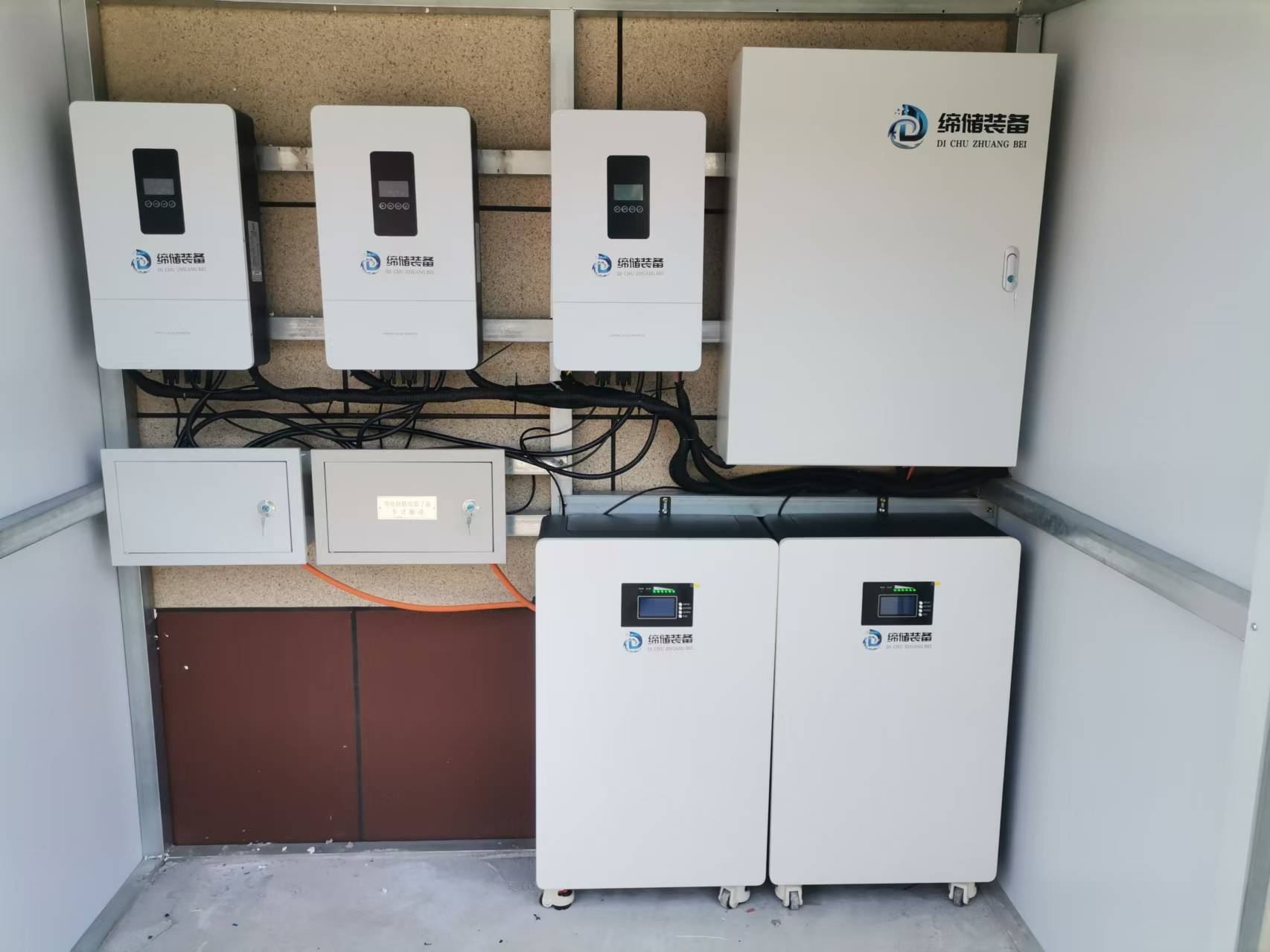

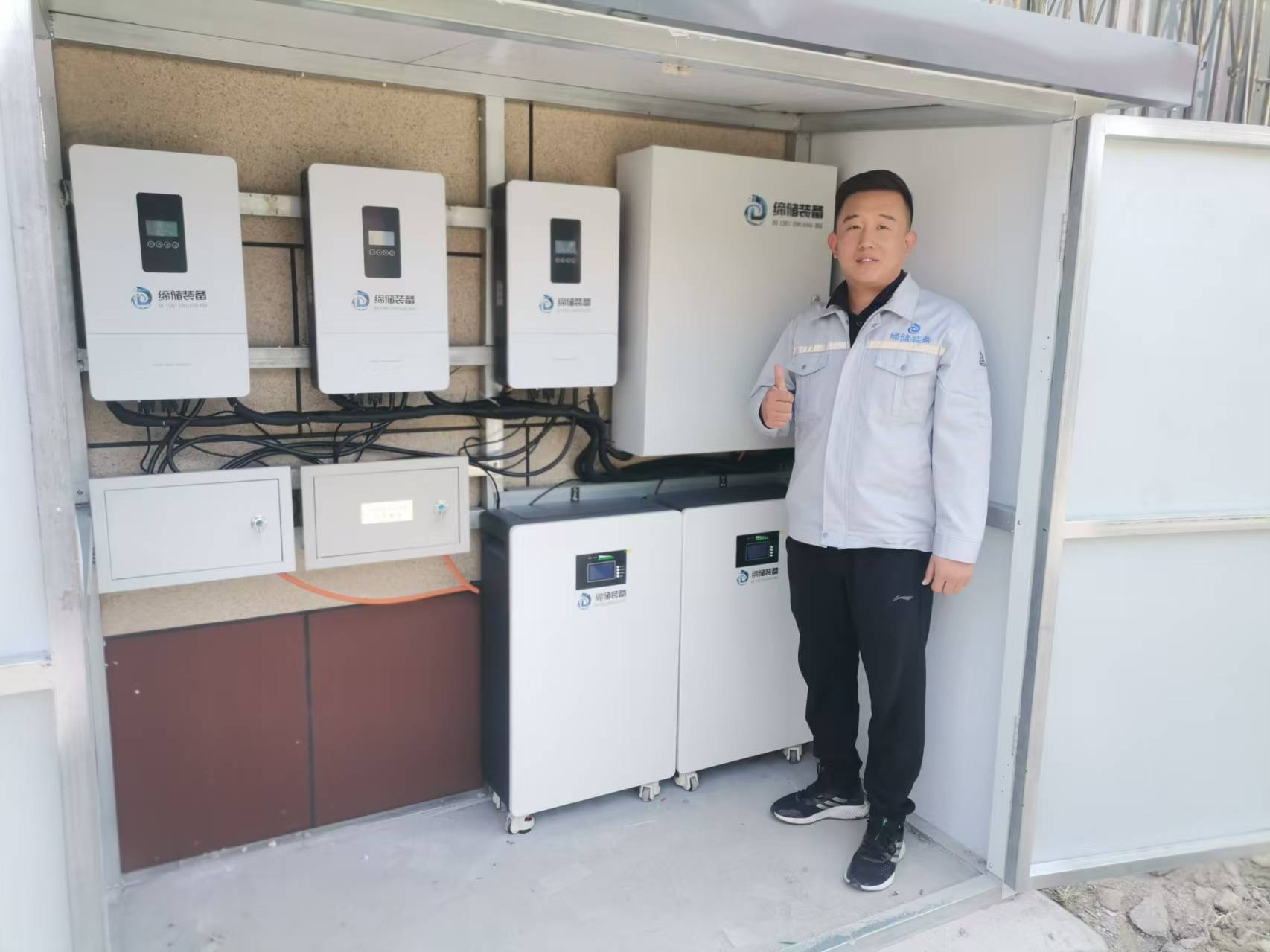

Our energy storage system is an intelligent energy solution that integrates lithium iron phosphate batteries and high-performance inverters. It is specially designed for households, businesses, microgrids and source grid loading and storage scenarios. The light energy storage system adopts a modular design, supports stacking and wall-mounted installation, flexibly adapts to different space needs, and has the characteristics of efficient energy conversion, long life, high security and intelligent management

Product features
Efficient energy conversion

The use of high-quality lithium iron phosphate batteries has a cycle life of more than 6,000 cycles and a service life of more than 10 years.

The maximum conversion efficiency of the inverter can reach more than 98%, and it supports fast charging and discharging.

Flexible installation method

Light energy storage supports stacking and wall-mounted installation, saving space, and a single machine can support up to 6 stacks.

Modular design, simple wiring, high reliability, fast response, long service life, more efficient, safe, easy to expand.

Intelligent Management System

Equipped with advanced battery management system (BMS), real-time monitoring of battery status, providing multiple protection such as overvoltage, undervoltage, overtemperature, etc. Support RS485, CAN and other communication protocols, and can be seamlessly integrated with mainstream inverters.

High security

Lithium iron phosphate batteries have excellent thermal stability and will not cause runaway heating, even under extreme conditions.

The inverter is equipped with a complete fault protection function to ensure the safe operation of the system.

application scenario

Home energy storage modern house

Combined with solar panels, excess energy is stored during the day and used at night or during power outages.

Provide backup power to ensure the normal operation of basic household appliances in the event of a power outage.

Industrial and commercial energy storage

Charge when the electricity price is low, discharge when the peak, and reduce the cost of electricity.

Improve energy efficiency and reduce dependence on the power grid.

microgrid

Support off-grid and grid-connected operations to enhance energy self-sufficiency.

Optimize the use of distributed energy and reduce the instability of new energy generation.

source network load and storage

Smooth power fluctuations on the power generation side and the user side to improve the quality of the power grid.

Realize primary and secondary frequency modulation control to enhance power grid stability

微信图片_20250219155145.jpg 微信图片_20250219155154.jpg 微信图片_20250219155200.jpg 微信图片_20250219150504.jpg
