Battery For Storing Solar Energy
Brand Dichu Equipment Technology (Shandong) Co., Ltd.
Product origin Weifang, China
Delivery time 15-20 days (can be expedited)
Supply capacity 5GW
Efficient energy conversion
Using high-quality lithium iron phosphate batteries, the cycle life exceeds 6,000 times and the service life is more than 10 years.
The inverter has a maximum conversion efficiency of more than 98% and supports fast charging and discharging.
Flexible installation method
Supports stacking and wall-mounting installation to save space. A single machine supports up to 6 stacking.
Modular design, simple wiring, high reliability, fast response speed, long service life, more efficient, safe, and easy to expand.
Intelligent management system
Equipped with an advanced battery management system (BMS), real-time monitoring of battery status, and multiple protections such as overvoltage, undervoltage, and overtemperature are provided. Supports multiple communication protocols such as RS485 and CAN, and can be seamlessly integrated with mainstream inverters.
High safety
Lithium iron phosphate batteries have excellent thermal stability and will not cause thermal runaway even under extreme conditions.
The inverter has a complete fault protection function to ensure safe operation of the system.

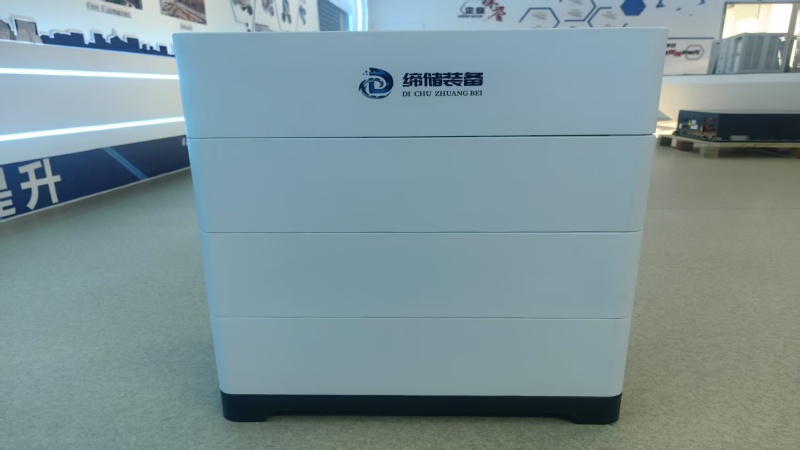

Solar energy storage battery
Solar energy storage battery is a highly efficient energy storage solution designed for solar power generation systems. It aims to convert the excess electricity generated by solar panels into storable electricity for future use. This battery uses lithium iron phosphate batteries, which have high energy density, long cycle life and fast charge and dischar
ge capabilities. It can effectively improve the energy utilization efficiency of solar energy systems, reduce dependence on traditional power grids, and provide reliable power support for home, commercial and industrial users.
Product Parameters：
| Battery module technical parameters | |||||||
| Battery module model | DC-Genius 5H-P | DC-Genius 10H-P | DC-Genius 15H-P | DC-Genius 20H-P | DC-Genius 25H-P | DC-Genius 30H-P | |
| Rated voltage | 51.2 V | ||||||
| Maximum charge and discharge power | 2.5 kW | 5 kW | 5 kW | 5 kW | 5 kW | 5 kW | |
| ﹣20-+50℃ | |||||||
| Certification | IEC62619, IEC63056, EN IEC61000-6-1, IEC61000-6-3, EN IEC62040-1, EN IEC62477-1, IEC60730-1 Annex H, IEC60529 IP66, UN38.3, MSDS, RoHS(2011/65/EU+2015/863),WEEE(2012/19/EU), ISTA | ||||||
| Technical Parameters | ||||
| Inverter Model | DC-Genius 8000-T1 | DC-Genius 10K-T1 | DC-Genius12K-T1 | DC-Genius 15K-T1 |
| Phase | Three-phase | |||
| Number of independent MPPTs | 2 | |||
| Battery module technical parameters | ||||
| Battery module model | DC-Genius 10HS——DC-Genius 60HS | |||
| Number of modules | 4-12 | |||
| Battery capacity | 10 kWh-60 kWh | |||
| Rated voltage | 204.8 V-614.4 V | |||
| Maximum operating current | 25 A | |||
| Operating temperature range | ﹣20-+50℃ | |||
| Certification | IEC62619, IEC63056, EN IEC61000-6-1, IEC61000-6-3, EN IEC62040-1, EN IEC62477-1 IEC60529 IP66, UN38.3, MSDS, RoHS(2011/65/EU+2015/863),WEEE(2012/19/EU), ISTA | |||
| System Parameters | |||||||
| Battery rating | LFP(LiFepo4) | ||||||
| Protection level | IP66（outdoor） | ||||||
| Certification | EN IEC62109-1, EN IEC62109-2, IEC61683, IEC61727, IEC62116, IEC60068, EN IEC61000-6-1,EN IEC61000-6-3, IEC60529 IP66, EN50549-1, EN50530, Italy CEI 0-21, Germany VDE4105, UK G98, G99,Spain UNE217001, UNE217002, NTS 2.1，RoHS(2011/65/EU+2015/863), WEEE(2012/19/EU), ISTA, UKCA | ||||||
Product Features
Efficient energy conversion
Using high-quality lithium iron phosphate batteries, the cycle life exceeds 6,000 times and the service life is more than 10 years.
The inverter has a maximum conversion efficiency of more than 98% and supports fast charging and discharging.

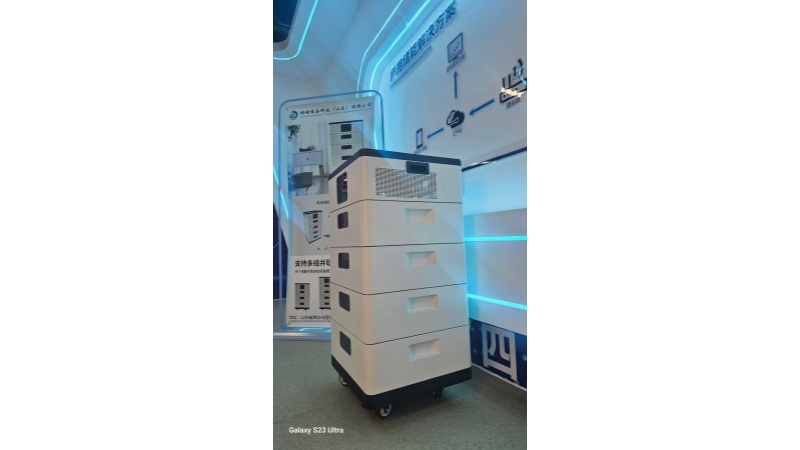

Flexible installation method
Supports stacking and wall-mounting installation to save space. A single machine supports up to 6 stacking.
Modular design, simple wiring, high reliability, fast response speed, long service life, more efficient, safe, and easy to expand.
Intelligent management system
Equipped with an advanced battery management system (BMS), real-time monitoring of battery status, and multiple protections such as overvoltage, undervoltage, and overtemperature are provided. Supports multiple communication protocols such as RS485 and CAN, and can be seamlessly integrated with mainstream inverters.
High safety
Lithium iron phosphate batteries have excellent thermal stability and will not cause thermal runaway even under extreme conditions.
The inverter has a complete fault protection function to ensure the safe operation of the system.
Application scenario
Home energy storage
Combined with solar panels, store excess energy during the day and use it at night or during power outages.
Provide backup power to ensure the normal operation of basic household appliances during power outages.
Industrial and commercial energy storage
Charge when electricity prices are low and discharge during peak hours to reduce electricity costs.
Improve energy efficiency and reduce dependence on the power grid.
Microgrid
Support off-grid and grid-connected operation to improve energy self-sufficiency.
Optimize the use of distributed energy and reduce the instability of renewable energy generation.
Source-grid-load-storage
Smooth power fluctuations on the power generation side and the user side to improve the quality of the power grid.
Realize primary and secondary frequency modulation control to improve the stability of the power grid
